Customized Motor Stainless Steel Wave Spring Washer 14.5mm x 21.3mm x 0.25mm

Stainless Steel Motor Wave Spring Washers are most important used for loaded ball bearings, pre-loaded bearings in electric motors application. Wave washer totally noise free operation, Space saving in axial and radial direction, Reduced working height with same force

Material:

Common materials of construction for wave washers include spring steel, stainless steel, nickel base alloy, and copper base alloy or bronze. Carbon spring steel, hardened and tempered.

Wave Spring Washer Parameter

Wave washers, also referred to as wave springs, are wavy metal washers designed to provide a compensating spring force or absorb shock when under load. Wave washers are one of several types of spring washers. They are defined by their wave-like appearance and their ability to bear a load as they are deflected in a linear range.

Applications:

The wave spring washers in this range are particularly useful in applications requiring lighter force locking and anti-vibration characteristics. For pre-loaded bearings in electric motors: Installed in the ball bearing housing and works by maintaining a force on the outer face of the ball bearing. Wave washers provide a compensating spring force and sustain a load or absorb shock. This characteristic can be used to pre-load shafts or bearings, absorb shock, or compensate for dimensional variations.

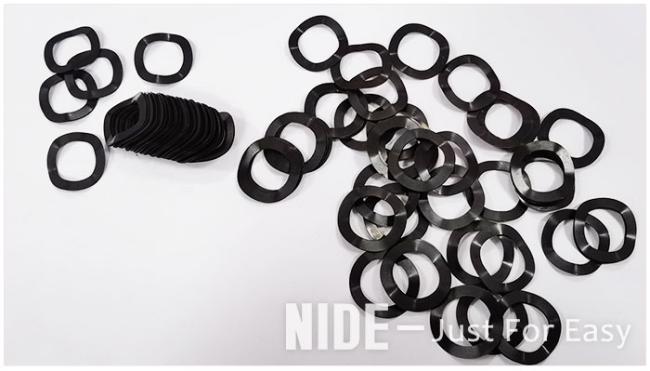

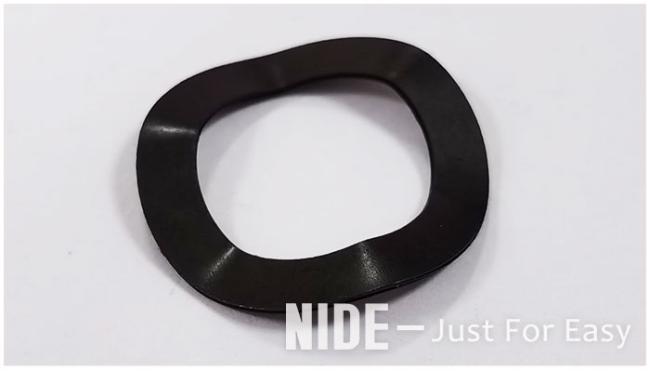

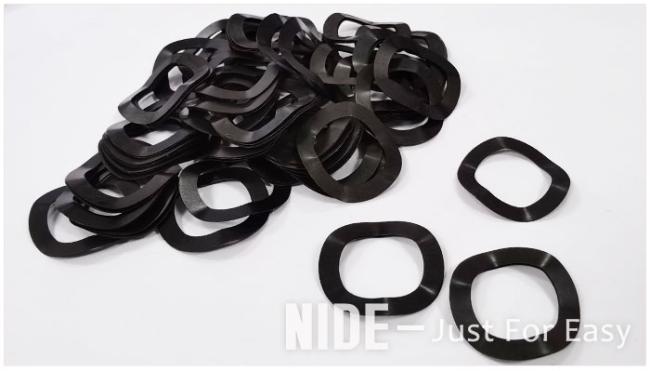

Wave Spring Washer Picture
