6202 RS Deep Groove Ball Bearing With Excellent Dust Protection

6202 RS deep groove ball bearing adopts rubber sealing cover, which has good contact and sealing performance, and has a good dustproof effect.

6202 RS deep groove ball bearing is suitable for fan motors, hydraulic generators, vertical motors, propeller shafts for ships, reducers for rolling screws in rolling mills, tower cranes, coal mills, extruders, and forming machines.

6202 RS deep groove ball bearing parameters

Series: Deep Groove Ball Bearings

Type: 6202 RS

Metering System: Metric

Bearing Type: Ball

Load direction: radial

Structure: Single Column

Seal Type: Rubber Seal Cover

Inner diameter: 15 mm

Outer diameter: 35 mm

Width: 11 mm

Ferrule Material: Chrome Steel

Ball Material: Chrome Steel

Cage material: stainless steel

Dynamic radial load: 7650 N

Static radial load: 3750 N

Temperature range: -30° to 110 °C

Ball diameter: 5.953mm

Number of balls: 8

Weight: 45g

6202 RS deep groove ball bearing suitable environment

1. The external environment is relatively harsh.

2. The occasions where the starting speed is normal.

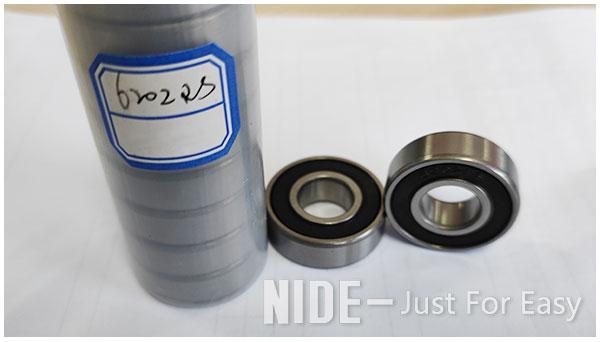

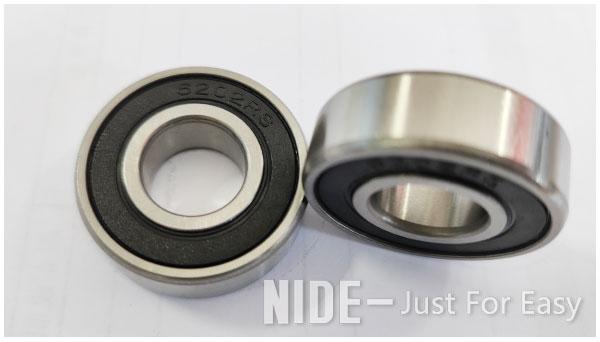

6202 RS deep groove ball bearing pictures

Information needed for ball bearing inquiry

It will be better if customer could send us detailed drawing including below information.

1. Ball bearing model number

2. Ball bearing dimension

3. Ball bearing application

4. Required quantity

5. Other technical requirement.
