Rare Earth Electric Motor Spare Parts Strong Power Shaped Ferrite Magnet Single Sided

Custom Strong Power Shaped Ferrite Magnet Single-Sided Magnets

The ferrite magnet material is a sintered permanent magnet material, which is composed of barium and strontium ferrite. This kind of magnet not only has strong anti-demagnetization performance, but also has the advantage of low cost. Ferrite magnets are rigid and brittle and require special machining processes. Because the magnets of the opposite sex are oriented along the manufacturing direction, they must be magnetized in the direction taken, while the magnets of the same sex are not oriented, so they can be magnetized in any direction.

The magnetic energy product ranges from 1.1MGOe to 4.0MGOe. Due to its low cost, ferrite magnets have a wide range of applications, from motors, speakers to toys and handicrafts, so they are currently the most widely used permanent magnet materials.

Our magnet products have stable performance, strong magnetic force and good consistency.

The main properties are: N35 N38 N40 N42 N45 N48 N50 N52 (M H SH EH UH temperature resistance 80-200 ℃).

The product types include: NdFeB magnets, ferrite magnets, rubber magnets, single-sided magnets, magnetic buckles, magnet products, etc.

Permanent Ferrite Magnets Parameter

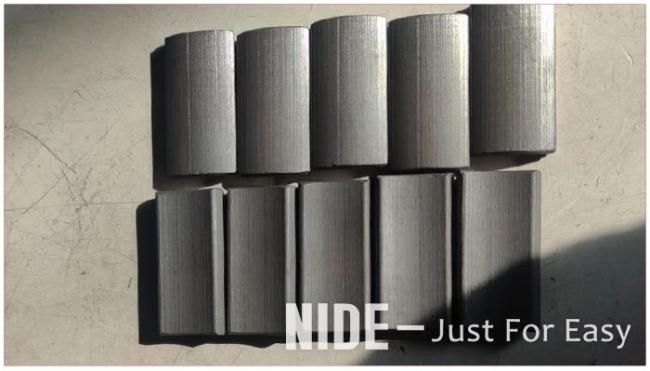

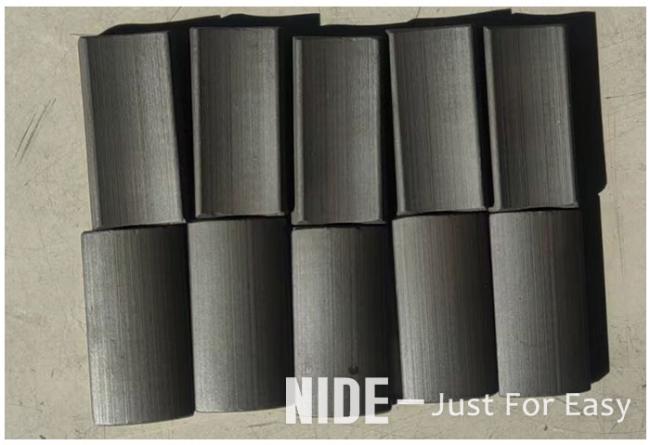

Ferrite Magnets Picture

Information needed for magnet inquiry

It will be better if customer could send us detailed drawing including below information.

1. Magnet drawing

2. Magnet material

2. Magnet dimension: width, thickness, tolerance.

3. Magnet grade

4. Magnet applications

5. Required quantity: normally its weight or quantity

6. Other technical requirement.

If you are not sure which grade is proper, please contact our engineer. We can also customize according to your needs

NIDE can offer a variety of motor magnets, please contact us if necessary.
