Custom Electric Motor Spare Parts NdFeB Neodymium Magnet Square Strong With Hole

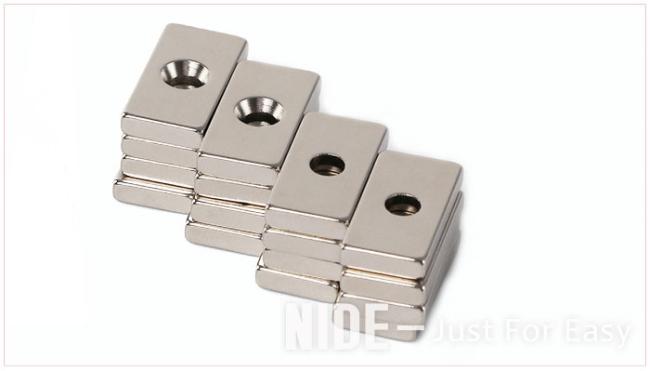

Custom NdFeB neodymium magnet square strong magnet with hole
The Strong Permanent Rare Earth Manet is very durable.Coated with three layers of nickel, copper and nickel to reduce corrosion and provide a smooth finish which greatly increase the longevity of the Magnets.
Has a strong magnetic force.Each magnet can support 12kg pull vertically from the magnetic face when in flush contact with a mild steel surface.
Used for Refrigerator,Cruise,Curtain,DIY,Science, etc.
NIDE offers strong neodymium magnets at affordable prices. A variety of stock rare earth magnets are available. Including Neodymium Block Magnets, Neodymium Disc Magnets, Bonded Neodymium Magnets, N35 Neodymium Magnets, N42 Neodymium Magnets, N52 Neodymium Magnets, N55 Neodymium Magnets, Pot Magnets, High Temperature Magnets and more.
Strong Neodymium Magnet parameter
| Product Name : | Strong Neodymium Magnet for Electric Motor Rotor |
| Model: | N42 or N35-N52 (M.H.SH.UH.EH.AH) |
| Size: | Customized |
| Type: | Permanent |
| Composite: | NdFeB Magnet |
| Shape: | Arc |
| Coating: | Nickle coated ; (Ni/Zn/Epoxy black can choose) |
| Test: | Salt spray test |
| Material : | NdFeB |
| Working temperature : | 80-220 Degree Centigrade |
| Tolerance: | ±1%, 1%mm |
| Processing Service: | Cutting, Punching, Moulding |
| Use&Application : | Industrial applications |
| Delivery Time: | 15-45 days |
| MOQ: | 10000pcs |
Information needed for magnet inquiry
It will be better if customer could send us detailed drawing including below information.
1. Magnet drawing
2. Magnet material
2. Magnet dimension: width, thickness, tolerance.
3. Magnet grade
4. Magnet applications
5. Required quantity: normally its weight or quantity
6. Other technical requirement.
If you are not sure which grade is proper, please contact our engineer. We can also customize according to your needs
NIDE can offer a variety of motor magnets, please contact us if necessary.
