Motor Armature And Stator Slot Insulation Paper Wedge Inserting Machine 220V 60Hz
Motor stator slot insulation paper wedge forming and cutting machine for armature rotor
(1) Technical parameter of the stator slot paper forming and cutting machine
| Product name | CG1-100 paper wedge forming and cutting machine |
| Paper feeding length | 10~200mm |
| Paper cutting thickness | 0.2-0.5mm |
| Paper cutting speed | 120pcs/min |
| Power supply | 220V/ 50/60Hz |
| Machine Weight | 150Kg |
| Machine Dimension | 450*650*1100mm |
(2) Application of the stator slot paper forming and cutting machine
This insulation paper wedge forming and cutting machinemachine is used for wedge forming and cutting.
It is used for electric motor armature rotor and stator.
(3) Machine function and characteristic of the stator slot paper forming and cutting machine
This wedge forming and cutting machine is equipped with a double row mould for paper cutting, stepping motor for controlling paper feeding action, human machine interface for setting feeding length and a heating device which is used before forming.
Cutting speed and heating temperature are adjustable.

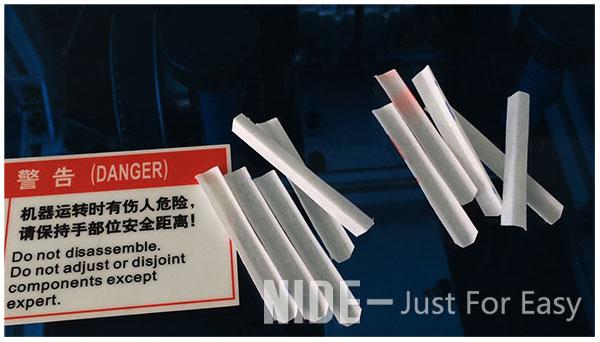

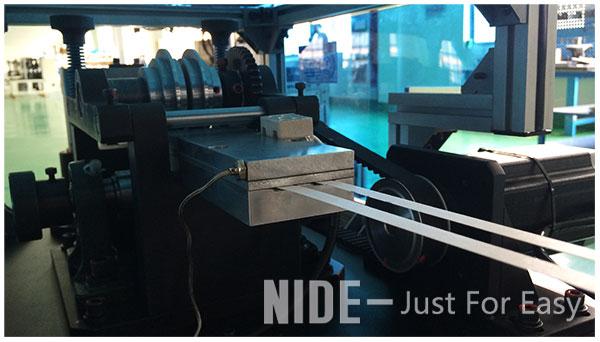

(4) Picture show
The stator insulation wedge forming and cutting machine youtube video https://youtu.be/CyRMSOyQyd8
