Shaftless Armature Spot Welding Machine Single Station For No Shaft Rotor Welding
ND-RWD01-B Single Station bldc armature rotor Spot Welding Machine
Introduction:
The BLDC armtaure spot welding machine is used for welding the wire and terminal of No-shaft rotor, mechanical preliminary positioning the rotor core, the spot welding machine can be adjusted for different dimension rotor, good quality welding source, the welding parameter can be set. Welding head is driven by cylinder to move up and down, servo driven indexing. It adapts Precision resistance welding, no consumption parts, no need welding strip, welding wire and solder,etc.
Adapts special water cooling machine, high efficiency cooling circulation system ensures welding power source and transformer can continuously work under normal temperature. During welding, The armature spot wedler has blowing system to discharge the smog to the exhaust outlet and be discharged by the exhaust fan
This armature spot welding machine has remote diagnosis function.
Specification:
| Prouduction name | no-shaft armature commutator spot welding machine |
| Rotor dia.: | 60-180 mm |
| Stack length: | 10-100 mm |
| Welding efficiency: | 15sec/pc |
| Welding displacement deformation: | adjustable and controllable within 0.1～0.8mm |
| Welding resistance: | ≤0.1 milli-ohm |
| Circulation system : | Cooling circulation system, |
| flow velocity : | ≥1000mL/min, |
| water temperature : | can be controlled within 25℃～30℃ |
| Power: | 20KW |
| Voltage: | Three phase AC380V±10% 50/60HZ |
| Dimension: | 1000X1200X1600(LXWXH) |

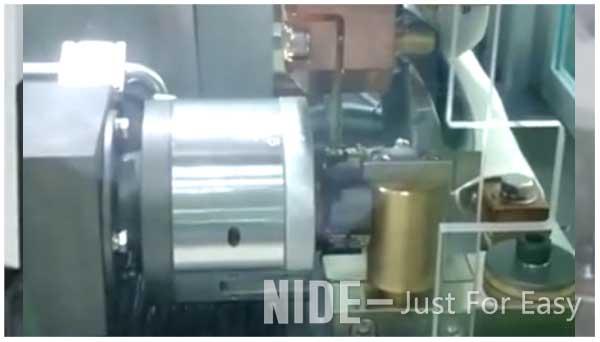

The armature spot welding machine display
