4 Pole BLDC Stator Coil Winding Machine Full Automatic Single Station
Price:
negotiable
MOQ:
1 set
Delivery Time:
60 working days
Brand:
NIDE
Product Description
ND-SW01-G BLDC stator Single needle Single Station needle winding machine
Introduction:
The stator needle winding machine is suitable for multi-pole brushless motor stator coil winding, adapts servo transmission structure, the stator needle winding machine automatically complete the winding process, high efficiency, safety. The coil winding machine can do multi strands wire parallel winding.
This BLDC motor stator needle winding machine has remote diagnosis function.
Specification:
| Product name: | Single Station BLDC stator coil winding machine |
| Wire dia.: | 0.15-1.2 mm |
| Winding speed: | 50-400 r/min |
| Winding Method: | Needle winding |
| Needle NO.: | one |
| Stack length: | 5-160mm |
| Stator ID: | 45-180mm |
| Stator OD: | 60-210mm |
| Pole No.: | 4 |
| Air pressure: | 0.5MPa～0.7 MPa |
| Voltage: | 380V/50HZ three phase four wires |
| Power: | 10 KW |
| Dimension: | 1200L*750W*1900H |
| Weight: | About 300kg |

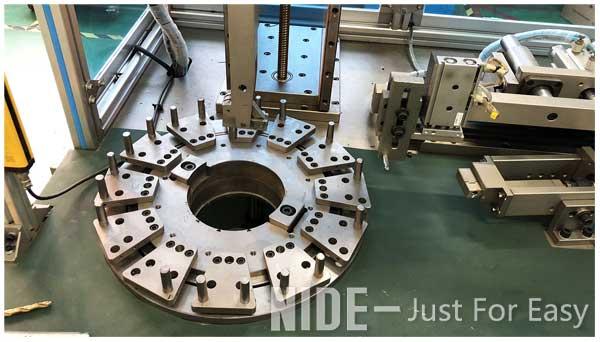

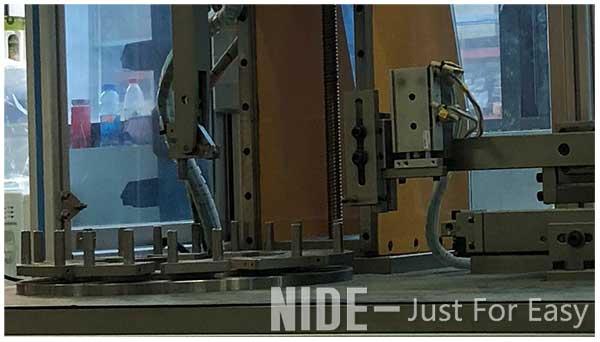

The bldc stator needle winding machine dispaly
