Hairpin Flat Wire Motor Stator Production Line For New Energy Vehicle

Hairpin Motor Stator Production Line For New Energy Vehicle Flat Wire Motor Manufacturing

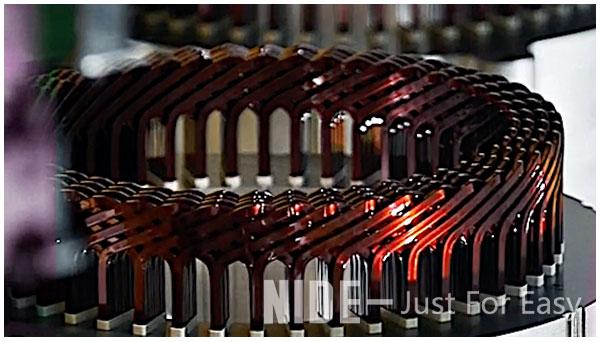

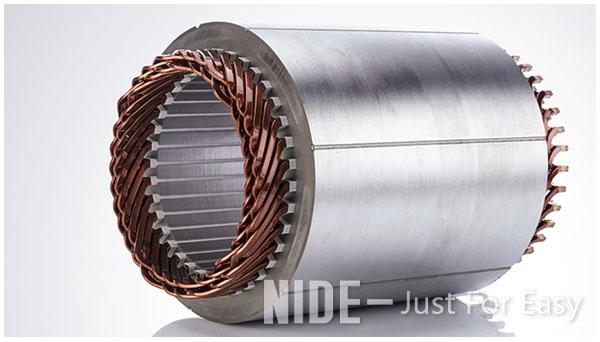

The Hairpin Motor Stator Production Line is suitable for New Energy Vehicle (EV motor) hairpin stator manufacturing.

Hairpin Motor Stator Production Line Features

With highly automated, informationized, flexible and intelligent.
The Hairpin Motor Stator Porudction Line is equipped with MES system
Adopt to produce 2-10 layers hair pin stators

Hairpin Motor Stator Production Line Specification

C/T 100s, occupied floor: 30m x 12m

Hairpin Motor Stator Production Line Process

Paper inserting--hair pin forming--hair pin coil inserting--end twisting--hair pin flat cutting--hair pin welding-- busbars welding -- coil testing -- coating/trickling -- performance test

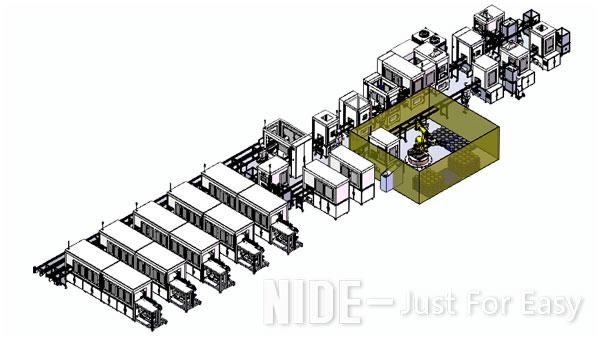

Hairpin Motor Stator Production Line Technical Proposal

B type paper inserting machine
B type paper hi-pot test & end expanding machine
Hair pin forming machine
Hair pin coil inserting machine
Hair pin end expanding machine
Hair pin end twisting machine
Perpendicularity straightening machine
Perpendicularity testing machine
Hair pin flat cutting machine
Hair pin laser welding machine
Coil testing machine
Trickling machine
Busbars welding machine
Laser marking machine
Stator tester (includes PDIV test)
