6 Zones Archway Metal Detector , Password Protection Walkthrough Metal Detector
6 Zones Archway Metal Detector , Password Protection Walkthrough Metal Detector
Quick detail:
1. Alarm way:Audio Alert,and LED Location lamp work at same time .
2. Detection Zone: 6 zone
3. Display ways: Single-line of LCD display
4. Sensitivity:0-99 adjustable
Product Introduction:

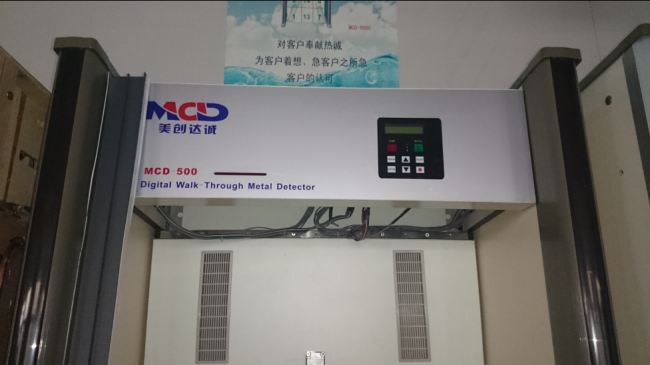

MCD-500A metal detector is a type security door for export,which is made of imported fire board material,
has the advantages of light weight and waterproof. The door is of body height and with both sides column
aluminum alloy alarm indicators. With electromagnetic fields, metal items can be detected put carried by
human when pass through the alarm device, items like various control tools, weapons, metal products,
electronic products and other metal articles, etc.
Product Functions:
1. Six interlaced detection regions of the same high with the body and combining
LED alarm light on column,displaying the area of metal detected accurately
2. Single Line LCD screen panels,with function of remote controller operate
3. 6+2 exploration area;six independent exploration area,a whole explorationarea,a stable,
more accurate detection
4. Two column alarm region:displaying the place of objective with built- in ultra-high LED panels
5. Sensitivity of every area can be adjusted independently from 0-99,
getting rid of interference of scheduled metal
6. Strong anti-interference:Digital and analog circuit design to prevent wrong alarm
7. Password protection function:just allowing authorized personnel to operate equipment
in order to insure security
8. Counting statistics features:intelligent traffic and police counter statistics function,
calculated through the volume and frequency of alarm
Product Parameters:
| Alarm way: | Audio Alert,and LED Location lamp work at same time |
| Detection Zone: | 6 zone |
| Display ways: | Single-line of LCD display |
| Sensitivity: | 0-99 adjustable |
| protect function | main body with waterproof function. |
| Tunnel Size: | 200(L)*70(W)*56(H)cm |
| Dimension: | 222(L)*82(W)*(67)Hcm |
| Net Weight: | 54.5kg/set |
| Gross Weight: | 65.kg/set |
| Package Size: | Main Body: 230*72*25cm(2 piece /carton)Host Machine:78*47*28cm(1 piece/carton |
Feature and Application:
Fireproof,waterproof ,and shockproof.multi-zone alarm.LCD display, totally English Menu,this type door
can prestore 3 type different model ,This detector door divide people with 6 zone ,better sensitivity.
Apply for need high sensitivity Exhibition Areas for both indoor and outdoor check,such as hardware and
Electronic manufacturer check if the person steal the metals,or Apply for large public Events,
check the person if take leather weapon.it is very suitable for exports
