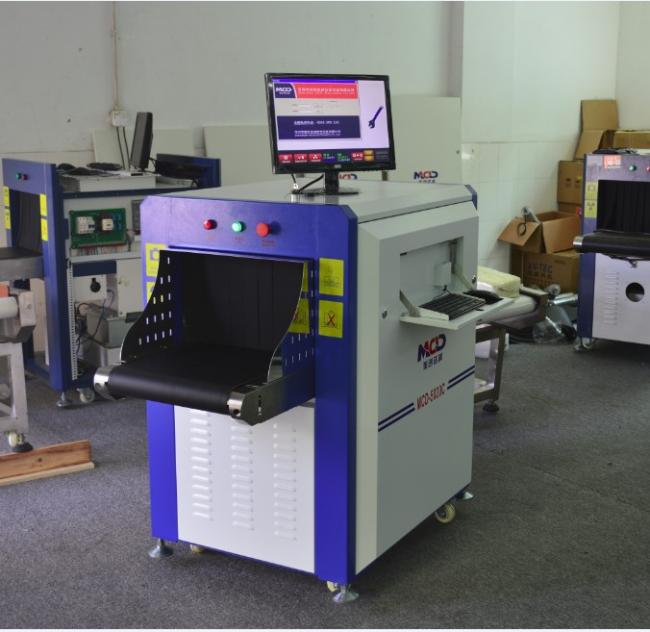

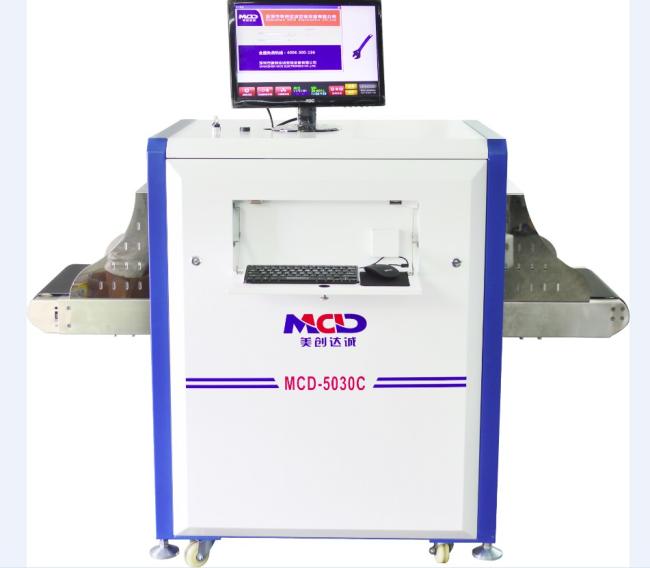

X-ray Security Inspection Equipments Baggage Detector Machine Prices

Specification :

Product Parameters:

General Specification
1.Tunnel Size: 500(W)*300(H)mm
2.Conveyor Speed: 0.22m/s
3.Conveyor Max Load: 170kg
4.Dose per Inspection: <2.9 uGy/h
5.Resolution: <0.101mmMetal Wire

6.Spatial resolution Level:diaφ1.0mm , Vertical:diaφ1.0mm

7.Through resolution:φ0.202mm
8.Penetration: 8mm Steel
9.Film Safety: Guarantee ISO1600 Film
10.X-ray Leakage: <0.05 uGy/h (at a distance of 5cmFrom external housing)

X-ray Generator
1.Generate direct: Upward
2.Generate angle: 80 degree
3.Anode Voltage: 80Kv
4.Anode power: 0.4 to 0.5mA
5.Cooling / Duty Cycle: Oil Cooling /100%

Image System
1.X-ray Sensor: L-Shaped Photodiode Array (monoenergetic) , 12bit Deep
2.Monitor: High Resolution Color, LCD Accord, 17 inch

3.Detector:2

4.Color display:full color
5.Image Processing: Edge enhancement, image strengthening,

   Image lightening, reducing  darkening, image returning, image retrieval.
6.Image Grey Level: 4096
7.Image Max Resolution: 1024 * 1280 pixel
8.Image Processing: 24bit for processing real time
9.Image storage: Storage 60000 pictures in real time

10.Zones & Zoom: 1-9 Image regions, 2,4,8,16 Times Enlarge, Whole screen

     continuous observation

11.Multi-energetic distinguish objects: organic objects in orange,inorganic objects in blue,

     mixture in green

Installation Data

1.Operating Temperature/Humidity: 0℃~45℃/20%-95%(non-condensing)

2.Storage Temperature/Humidity: -26℃~60℃/20%-95%(non-condensing)

3.Operation Power:220AVC/(±10)50Hz±3Hz

4.Power Consumption:1.0KW(Max),0.3KW(working)

5.Noise: <55 dB

Feature and Application:

X-rays through inspection,Which show object interior metal structure by LCD screen.Applied to

factory inspection products and institutions of the security. Such as electronic factory,

shoe factories, toy factories, court and station, as well as large activities handbag security.

Payment Terms

T/T directly, L/C formally, Escrow convenient

Western Union small order etc.

Shipping Method

By express    (3-5days, most expensive)

By air        (5-7days, more expensive)

By sea        (15-28days, cheapest)
