X Ray Machine MCD-6550 with Network Interface Widely for Baggage Inspection
MCD -6550 x - ray security inspection system for Raiway Station / Schools , CE Certificate
Key Feature:
- Sound and light alarms
- Network Interface: Can connect local area networks, multiple terminals can check luggage’s at the same time
- Safer-ray: Ray fired automatic control, to avoid misusing launching.
- One shutdown control button: You just need to rotate the key and the equipment will automatic power off safely, no need for complex multi-step operation, more convenient and simpler.
- Eagle Eye: Current region can be reviewed convent in enlarged status.
- Fault self-diagnosis: Automatically determine the failure and give prompt information, easy to maintain.
Product Parameters:
General Specification
| Tunnel Size | 650(W)*500(H)mm |
| Conveyor Speed | 0.22m/s |
| Conveyor Max Load | 170kg |
| Dose per Inspection | <1.4uGy/h |
| Resolution | <0.0787mmMetal Wire |
| Spatial resolution Level | diaφ1.0mm , Vertical:diaφ1.0mm |
| Through resolution | φ0.254mm |
| Penetration | 34mm Steel |
| Film Safety | Guarantee ISO1600 Film |
| X-ray Leakage | 0.05 uGy/h (at a distance of 5cmFrom external housing) |
X-ray Generator
| Generate direct | Upward |
| Generate angle | 80 degree |
| Anode Voltage | 100~160Kv |
| Anode power | 0.4 to 1.2mA |
| Cooling / Duty Cycle | Oil Cooling /100% |
Image System
| X-ray Sensor | L-Shaped Photodiode Array (monoenergetic) , 12bit Deep |
| Monitor | High Resolution Color, LCD Accord, 17 inch |
| Detector | 2 |
| Color display | full color |
| Image Processing |
Edge enhancement, image strengthening, Image lightening, reducing darkening, image returning, image retrieval. |
| Image Grey Level | 4096 |
| Image Max Resolution | 1024 * 1280 pixel |
| Image Processing | 24 bit for processing real time |
| Image storage | Storage 60000 pictures in real time |
| Zones & Zoom |
1-9 Image regions, 2,4,8,16 Times Enlarge, Whole screen continuous observation |
| Multi-energeti distinguish objects |
organic objects in orange,inorganic objects in blue, mixture in green |
|
High-energy /low energy |
switch from high energy to low energy |
Installation Data
| Operating Temperature | 0℃~45℃ |
| Operating Humidity | 20%-95%(non-condensing) |
| Storage Temperature | -26℃~60℃ |
| Storage Humidity | 20%-95%(non-condensing) |
| Operation Power | 220AVC/(±10)50Hz±3Hz |
| Power Consumption | 1.0KW(Max) |
| Noise | <65 dB |

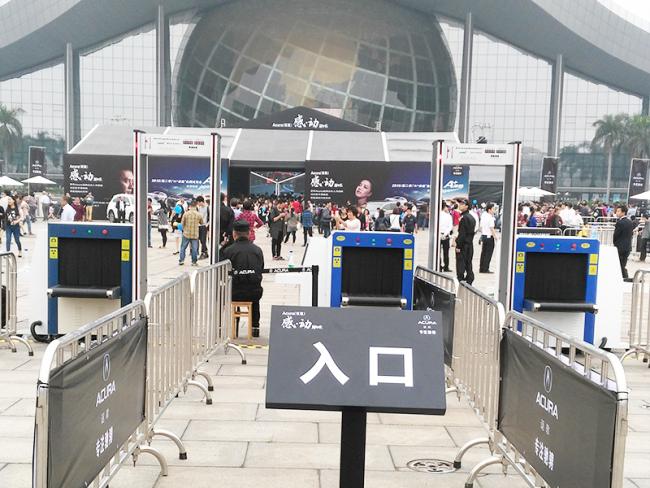

Feature and Application:
X-ray penetrate inspection, the object can be found within the metal structure, can display
the naked eye can not see where the liquid is also very obvious object display.Used in the
factory testing of security products and business units such as: electronic factories, shoe
factories,toy factories, courts, railway stations, and event bag, line security management
package.
