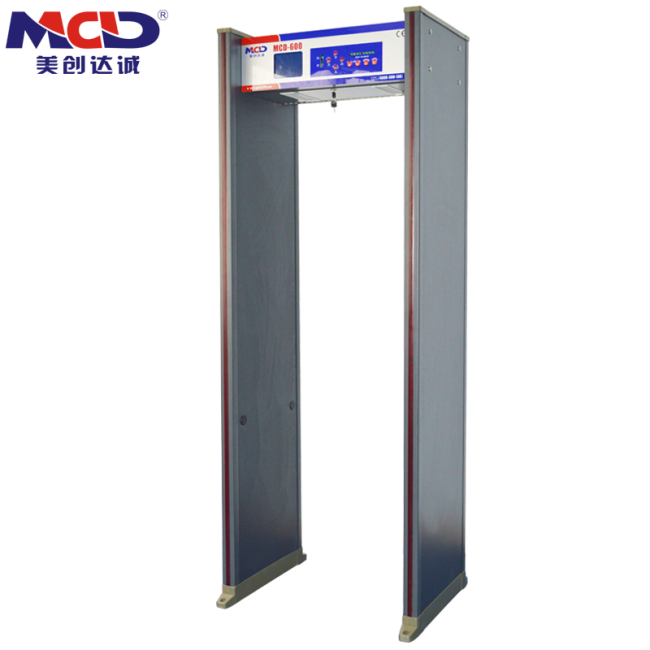

Arched door Metal Detector Gate for Airports MCD-600

Feature
1, 6 independent detection zones. No blind area and each spot of search coverage are evenly detected

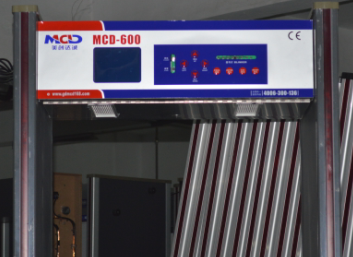

2, LED Display.
3, Alarm: Audible tone
6 independent distributing search coverage and acousto-optic alarm when target is found. Panel indicator light directly displays the alarming area which can exactly indicate the target.
4, High adjustable sensitivity
Digital scanner gate is adjustable. In the highest volume, articles as small as a coin can be detected and indicated.
5, 100 sensitivity level Adjustable Flexibility: We can reach the security requirements by adjusting the flexibility. There are 100 flexibility degrees in each detective area.
6, Complex circuit, infrared installation and computer automatic identification decrease the mistakes and missing dramatically. It can automatically show the alarm frequency and numbers of passed people.
7, Adoption of weak magnetic field launching technology will not cause harm to heart pacemaker wearer, pregnant women, disks and videos.
8, Two or more gates can work simultaneously

Specification

1,Power supply: AC220V/50Hz or AC110V/60Hz

2,Back up battery: 2~8 hours according requirement

3,Power consumption:less 35W

4,Operation temperature:-20 °C to 55 °C

5,Weight:about: 80kg

6,Through rate: more than 60 million / per minute.

7,Tunnel size: 2010*700*560mm

8,Dimension: 2230*810*560mm

9,Package size:2280*665**220mm(Main body) 780*480*290mm(Host processor)

Function:

Walkthrough Metal Detector can easily detect weapons, such as knife and gun, and any metal article which is hidden in human body.
