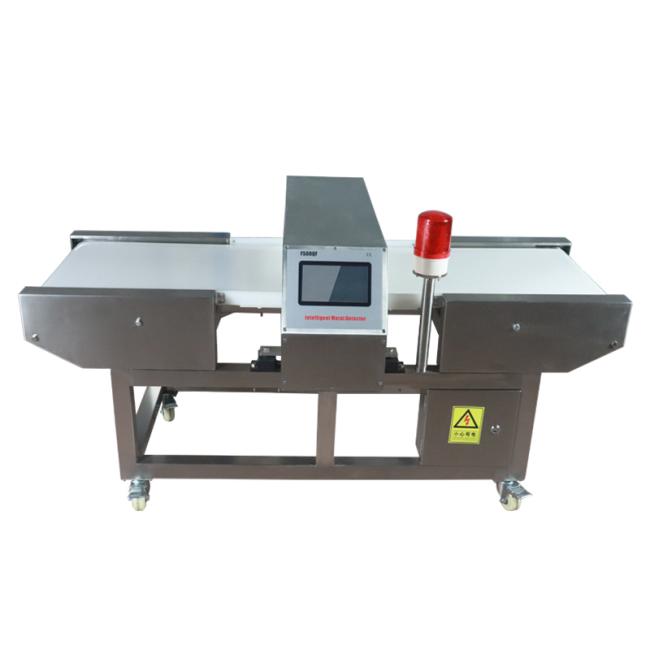

Big Tunnel Food Metal Detector AC100 - 265V / 50 - 60Hz Power Supply MCD-F500QF
Big Tunnel Food Metal Detector Indonesia MCD-F500QF
Quick detail
- Detection sensitivity : 0.6mm-3.0mm iron ball , 1.5-5.0 Stainless steel
- Alarm mode : The buzzer alarm, the motor automatically stop
- Detection method : the electromagnetic wave detection , the new analog circuits and digital circuits combined
- Detection width : 45-80 cm , Customized
- Detection height : 10-50cm Customized
- Sensitivity adjustable:0-9 Level
- Transfer speed : 25 m / mins
- Power : 100-265VAC , 50-60Hz
- Size : (150-170)cm(L) * (80-90)cm(W) * (85-120)cm(H) (Demand can be made)
Metal Detector Parameters :
| Model |
Detecting height(cm) |
Detecting width(cm) |
Sensitivity(mm) |
Belt Size(cm) | ||
| Fe | SUS | Length | Width | |||
|
MCD-F500QF-09 |
6 | 30 | Φ0.6 | Φ1.2 | 258 | 28 |
| MCD-F500QF-12 | 9 | 30 | Φ0.7 | Φ1.5 | 258 | 28 |
| MCD-F500QF-15 | 12 | 40 | Φ0.8 | Φ1.5-Φ2.0 | 258 | 38 |
| MCD-F500QF-20 | 17 | 40 | Φ1.0-Φ1.25 | Φ2.0-Φ2.5 | 258 | 38 |
| MCD-F500QF-25 | 22 | 50 | Φ1.5-Φ2.0 | Φ3.0-Φ4.0 | 330 | 48 |
| MCD-F500QF-30 | 27 | 50 | Φ2.5-Φ3.0 | Φ5.0-Φ6.0 | 330 | 48 |
| MCD-F500QF-35 | 32 | 60 | Φ3.0-Φ3.5 | Φ6.0-Φ7.0 | 330 | 58 |
| MCD-F500QF-40 | 37 | 60 | Φ3.5-Φ4.0 | Φ7.0-Φ8.0 | 330 | 58 |
| MCD-F500QF-45 | 42 | 70 | Φ4.0-Φ4.5 | Φ8.0-Φ9.0 | 330 | 68 |
| MCD-F500QF-50 | 47 | 70 | Φ4.5-Φ5.0 | Φ9.0-Φ10.0 | 390 | 68 |
| MCD-F500QF-55 | 52 | 80 | Φ5.0-Φ5.5 | Φ10.0-Φ11.0 | 390 | 78 |
| MCD-F500QF-60 | 57 | 80 | Φ5.5-Φ6.0 | Φ11.0-Φ12.0 | 390 | 78 |
| MCD-F500QF-65 | 62 | 90 | Φ6.0-Φ6.5 | Φ12.0-Φ13.0 | 390 | 88 |
| MCD-F500QF-70 | 67 | 90 | Φ6.5-Φ7.0 | Φ13.0-Φ14.0 | 390 | 88 |
| MCD-F500QF-75 | 72 | 100 | Φ7.0-Φ7.5 | Φ14.0-Φ15.0 | 450 | 98 |
| MCD-F500QF-80 | 77 | 100 | Φ7.5-Φ8.0 | Φ15.0-Φ16.0 | 450 | 98 |
| MCD-F500QF-85 | 82 | 110 | Φ8.0-Φ8.5 | Φ16.0-Φ17.0 | 450 | 108 |
| MCD-F500QF-90 | 87 | 110 | Φ8.5-Φ9.0 | Φ17.0-Φ18.0 | 450 | 108 |
| MCD-F500QF-95 | 92 | 120 | Φ9.0-Φ9.5 | Φ18.0-Φ19.0 | 450 | 118 |
| MCD-F500QF-100 | 97 | 120 | Φ9.5-Φ10.0 | Φ19.0-Φ20.0 | 450 | 118 |
|
Remarks: it can't detecting aluminum foil and oxidizing agent , And other additional features should be customized, such as: infrared control, automatic rejecting device, foot switch, alarm indicator, control device, etc |
||||||
Company information:
Shenzhen MCD Electronics Co.,Ltd. is a professional large-scale manufacturer of all kinds of metal detectors.integrating development and production together.our main products include hand held metal detector,walkthrough metal detector,under vehicle search mirror and related products.our company was established in 2005.and we have many years of history in security industry.Located near Shenzhen port.we enjoy convenient water,land and air transportation.
Welcome to contact us!Safety future, stability world
