Simplex Indoor Fiber Optic Cable for Telecommunication Network , Yellow
Price:
Negotiable
MOQ:
1000
Delivery Time:
3-5 days
Brand:
TTI Fiber
Product Description
Simplex Indoor Fiber Optic Cable for Telecommunication Network , Yellow
Quick Detail:

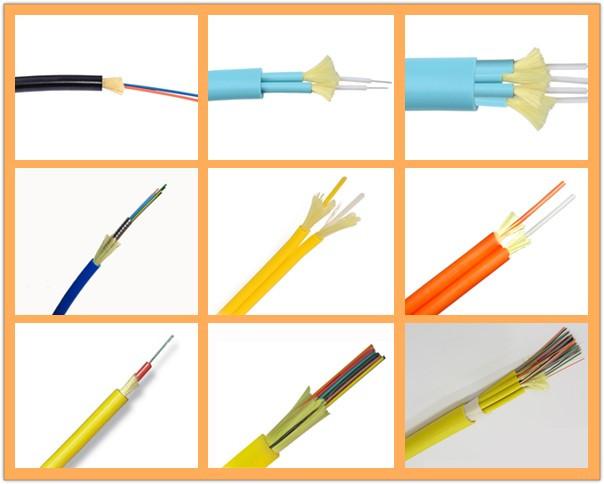

- Type: Simplex, Duplex
- Mode: 9/125, OM1, OM2, OM3, OM4
- Fiber: G652D, G657A
- Jacket: PVC, LSZH, OFNP, OFNR
- Cable color: Yellow, Orange, Aqua, Violet, Blue, Green, White, Black, Red...
- Application: Indoor
Features:
- 0.6mm, 0.9mm tight buffer/loose buffer fiber
- Aramid yarn for strength member
- Good mechanical and temperature performance
- High strength loose tube that is hydrolysis resistant
- Soft,flexible,easy to splice,and with big capacity date transmission
- Meet various requirements of market and clients
Application:
- Adopted to indoor distribution.
-
As pigtail of communication equipment
-
Suitable for communication equipment servrd
-
Can be installed conveniently and perated simply
Technical Parameters:
| Fiber Count |
Cable Dimension mm |
Cable Weight kg/km |
Tensile N |
Crush N/100mm |
Min. Bend Radius mm |
Range of Temperature
|
|||
| Long Term | Short Term | Long Term | Short Term | Dynamic | Static | ||||
| 1 | 1.6 | 2.0 | 30 | 60 | 50 | 30 | -20-+60 | ||
| 1 | 1.8 | 2.8 | 40 | 80 | 50 | 30 | |||
| 1 | 2.0 | 3.5 | 60 | 100 | 100 | 500 | 50 | 30 | |
| 1 | 2.4 | 4.5 | 60 | 100 | 100 | 500 | 50 | 30 | |
| 1 | 2.8 | 5.8 | 80 | 150 | 100 | 500 | 60 | 30 | |
| 1 | 3.0 | 6.5 | 80 | 150 | 100 | 500 | 60 | 30 | |
|
Note: 1. All the values in the table, which are for reference only, are subject to change without notice; 2..The minimum bend radius (static) is 15mm when G.657 fiber is used. |
|||||||||
