Square LC to Bare Fiber Optic Adapter with Ceramic Sleeve , Metal Housing
Price:
Negotiable
MOQ:
1000
Delivery Time:
2-3 days
Brand:
TTI Fiber
Product Description

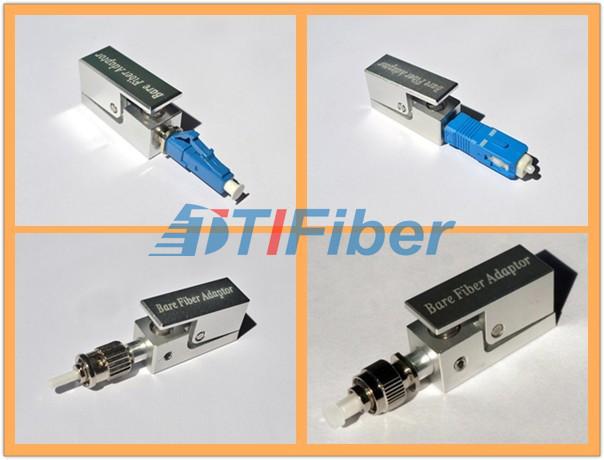

Square LC to Bare Fiber Optic Adapter with Ceramic Sleeve , Metal Housing
Description:
- Bare Fiber Optic Adapter is a most affordable and easy method for temporarily connecting bare fiber with all industry standard connectors. Bare fiber adapter are used as the medium to link the bare optical fiber to fiber optic equipment.
- It’s a very convenient way to connect unterminated fibers with standard FC, SC, ST, LC receptacles.
- You can simply strip, cleave, clean and insert the fiber, without the hassle of epoxy and epoxy curing steps.
- There are various types available: SC, FC, ST, SMA, LC, and so on. Both single mode and multimode types are available.
Features:
- Good inerchangeability
- Environmentally Stable and Reliable
- Accurate Size
- Excellent Return Loss
- Applicable standard: IEC 61754-13
- Complete Hybrid adapter
Technical:
- Insertion Loss ≤0.2dB
- Retentiveness 200-600g
- Mating Durability1000 times≤ 0.2dB
- Exchangeability: ≤ 0.2dB
- Salt Spray: ≤ 0.2dB
- Sleeve material: ceramic / metal
- Temperature Rang -40 to +85°C
Applications:
- Local Area Networks
- CATV System
- Telecommunication Networks
- Equipment Test
Specification:
|
Parameter |
Unit |
LC, SC, FC, MU, ST, SC-ST, FC-ST, FC-SC, FC-LC, FC-MU |
MTRJ |
|
||||||
|
SM |
MM |
SM |
MM |
SM |
||||||
|
PC |
UPC |
APC |
PC |
PC |
UPC |
PC |
PC |
APC |
||
|
Insertion Loss (Typical) |
dB |
≤0.3 |
≤0.2 |
≤0.3 |
≤0.2 |
≤0.3 |
≤0.2 |
≤0.2 |
≤0.3 |
≤0.3 |
|
Return Loss |
dB |
≥45 |
≥50 |
≥60 |
≥30 |
≥45 |
≥50 |
≥35 |
≥55 |
≥75 |
|
Exchangeability |
dB |
≤0.2 |
≤0.2 |
≤0.2 |
||||||
|
Repeatability |
dB |
≤0.2 |
≤0.2 |
≤0.2 |
||||||
|
Durability |
Time |
>1000 |
>1000 |
>1000 |
||||||
|
Operating Temperature |
°C |
-40~75 |
-40~75 |
-40~75 |
||||||
|
Storage Temperature |
°C |
-45~85 |
-45~85 |
-45~85 |
||||||
|
Plug and Unplug force (g/f) |
200—600 |
|||||||||
|
Spec |
Simplex and Duplex |
|||||||||
Adapter order information:
