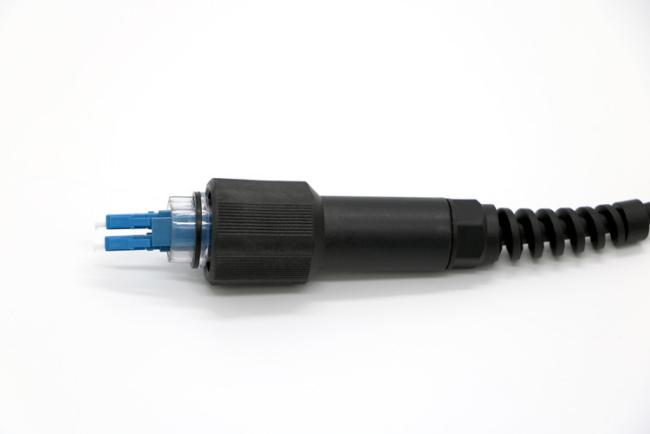

2 Cores Outdoor LC-FC Waterproof Fiber Optic Patch Cord SM/MM FTTA With CPRI Cable
Outdoor LC-FC Waterproof Patch Cord SM/MMfor FTTA with CPRI Cable
For optical fiber connection, duplex LC interface of the connector system includes an industry standard for quick, paired with all LC duplex SFP transceiver. The ODVA connector can be designed for either the application single mode or multimode optical fiber transmission.
Quick Details:
Type: FC-LC patch cord
Mode: Single mode and Multimode
Cable Fan-out: 0.5M, 1M
Ferrule End-face: PC, UPC, APC
Cable core: 2core, 4core, 6core...customized
Cable length: 1M, 2M, 3M….customized
Features:
Standard Duplex LC connector, well connected with standard LC adaptor
Available Single mode and Multimode
P67 protection, salt-mist proof, humidity proof,dust proof
Aluminum housing, compact design
Broad temperature range and wide range of indoor and outdoor cables
Easy Operation, reliable and cost-effective Installation
Applications:
Telecommunication networks
CATV, LAN, MAN, WAN, Test &Measurement
Optical access network
Fiber optic communication networks
Specification:
| Item | Single mode | ||
| Ferrule End-face | PC | UPC | APC |
| Insert attenuation | ≤0.3dB | ≤0.3dB | ≤0.3dB |
| Return loss | ≥45dB | ≥50dB | ≥55dB |
| repeatability | ≤0.1dB | ≤0.1dB | ≤0.1dB |
| Operation temperature | -20°C~+70°C(PVC)/-40°C~+90°C(LSZH/PU) | ||
| Outer diameter | 1.6mm |
||
Packing:
PE bag with stick label (we could add customer's logo in the label.)
Shipping:
- Door to Door: by express (such as DHL, UPS, TNT, FedEx etc.)
- Airport to Airport: by air
- Seaport to Seaport: by sea (our location Shenzhen is a seaport.)
