Non Metallic Fiber Optic Cable GYFTY Multi Core 6-288 Duct Loose Tube Customized Length

Price Negotiable

Price: Negotiable

MOQ: 1000

Delivery Time: 5-7 working days

Brand: TTI Fiber

Product Description

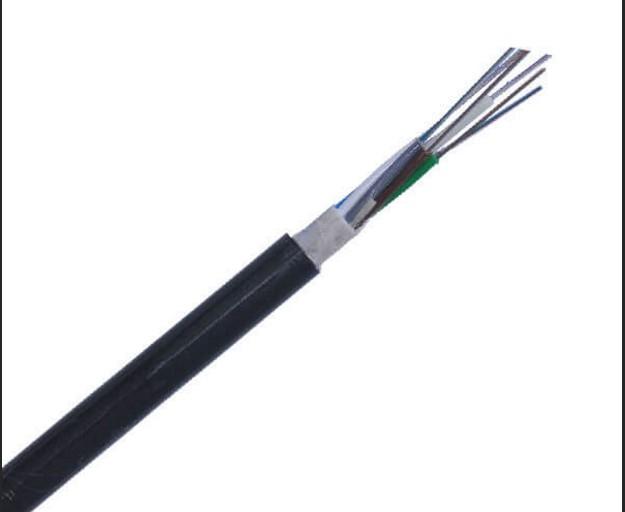

GYFTY Fiber Optic Cable Outdoor Multi-core 6-288 Duct Loose Tube Non-Metallic Cable

A: Application

☆.Adopted to Outdoor distribution.
☆.Adop0ted to trunk power transmission system.
☆.access network and local network in high electromagnetic interfering places.

B:Characteristics

1) Excellent mechanical and temperature permance

2) Special tube filling compound ensure a critical protection of fiber and resist the water

3)Single FRP as the central strength member to withstand axial loads

4) Outer sheath protects cable from ultraviolet radiation

C Specification

fiber count	configuration	filler number	out diameter	mass	minimum bend radius		tensile strength		crush resistance
	configuration		out diameter	mass	dynamic	static	short term	long term	short term	long term
	tubesxfibres		mm	kg/km	mm	mm	N	N	N/10CM	N/10CM
12	2x6	4	9.9	70	20D	10D	1500	600	1000	300
24	4x6	2	9	70	20D	10D	1500	600	1000	300
36	6x6	0	9	70	20D	10D	1500	600	1000	300
48	4X12	2	11	100	20D	10D	1500	600	1000	300
60	5x12	1	11	100	20D	10D	1500	600	1000	300
72	6x12	0	11	100	20D	10D	1500	600	1000	300
84	7x12	0	11.4	120	20D	10D	1500	600	1000	300
96	8X12	0	12.2	120	20D	10D	1500	600	1000	300
108	9x12	0	12.9	135	20D	10D	1500	600	1000	300
120	10x12	0	13.6	145	20D	10D	1500	600	1000	300
132	11x12	0	14.4	165	20D	10D	1650	600	1000	300
144	12x12	0	15.1	180	20D	10D	1800	600	1000	300
132	8x24	0	13.7	140	20D	10D	1500	600	1000	300
288	12x24	0	17.1	220	20D	10D	2200	600	1000	300
