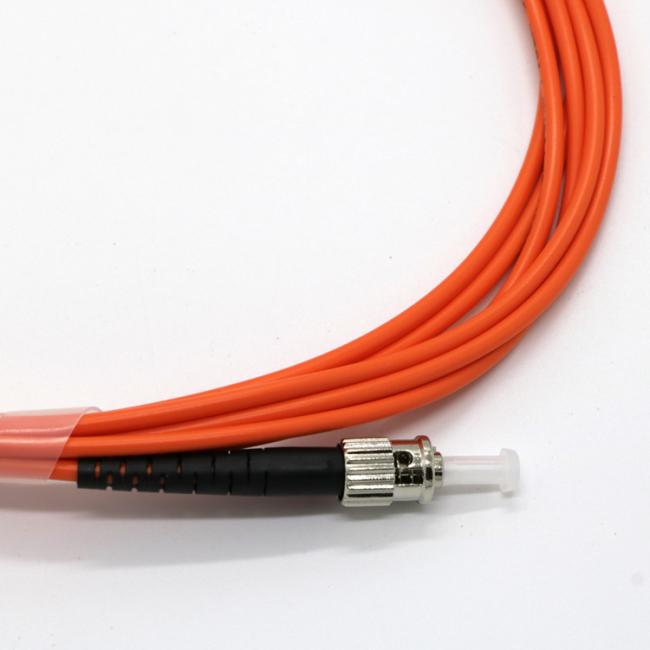

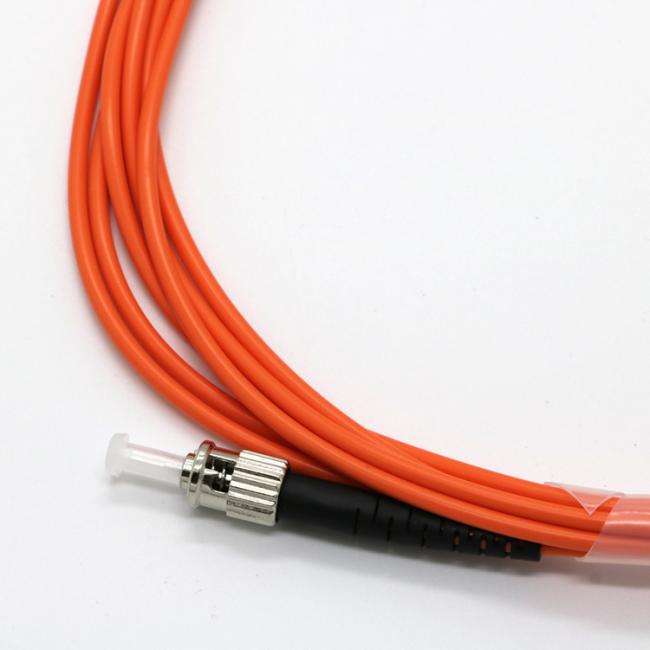

ODM Connector Fiber Optic Patch Cord Single Mode ST-ST SX DX Orange Color Jumper
Complies with IEC, Telcordia GR-326-CORE standard
Low insertion loss and high return loss
PC/UPC/APC polishing
Diameter:0.9, 2.0, and 3.0mm
Fiber jumper of the Single or multi mode is available
Simplex or duplex is available
PVC or LSZH fiber optical cable is available
Excellent changeability and repeatability
Tensile strength:10N
Operating temperature range:-40 to 80°C
Storage temperature range:-40 to 80°C
Color of fiber optic cable:Yellow (SM), Orange (MM), and Aqua (OM3)
Specification:
| Parameter | Single Mode | Multi Mode | ||||
| Basic | Fiber connector | FC, SC, LC, ST, MU, MTRJ, MPO | ||||
| Ferrule End-face | PC | UPC | APC | UPC | ||
| Insertion Loss | ≤0.2dB | ≤0.2dB | ≤0.3dB | ≤0.3bB | ||
| Return Loss | ≥50dB | ≥55dB | ≥60dB | ≥35dB | ||
| Ceramic Ferrule Specification | 125.5um concentricity deviations:<=1um | 127um concentricity deviations:<=3um | ||||
| Suitable Fiber | 9/125um | 50/125um,62.5/125um | ||||
| End-face Geometry | Radius of Curvature | 7~25mm | 5~12mm | N/A | ||
| Fiber Protrusion | ≤50nm | ≤100nm | N/A | |||
| Fiber Under Cut | ≤100nm | ≤100nm | N/A | |||
| Apex offset | ≤50um | |||||
| Mechanical | Exchangeability | ≤0.2dB | ||||
| Salt Spray | ≤0.1dB | |||||
| Drop | ≤0.2dB(1.5M, 5 drops) | |||||
| Vibration | IL ≤0.2dB(550Hz, 1.5mm) | |||||
| Repeatability | ≤ 0.1dB(1000 times) | |||||
| Durability | > 1000 times | |||||
| Operating Temperature | -40°C ~ +85°C | |||||
Features:
Convenience for connection and construction
High intensity and light weight
Provide UV protection, and mould proof, no cleft under stress, adapt to the environment for high fire rating
Application:
Ideal for use in vertical cabling of buildings and LAN
Ideal for use in tails of backbone network, and connect from outdoors to indoors directly
Ideal for use in connecting equipments, fix standard fiber to the linker
One piece per PE bag with stick label (we could add customer's logo in the label.)
Shipping:
Door to Door: by express (such as DHL, UPS, TNT, FedEx etc.)
Airport to Airport: by air
Seaport to Seaport: by sea (our location Shenzhen is a seaport.)
- Any inquiries or questions will be replied within 24 hours.
- Professional manufacture with 10 years production experience. Welcome to visit our website:www.ttifiber.com
- China factory OEM/ODM available
- High quality, reasonable& competitive price, fast lead time
- After-sale service: All the products will have been 100% full test before shipping, also with 2 years warranty.
- Fast delivery: samples order within 1 day, and 3-7 days for bulk orders.
- Payment: You can pay us via: T/T, , Paypal, or others.
- Shipping: By express: UPS,DHL,FexEx,TNT,EMS…;By air; By sea; Or you also can choose your own shipping forwarder.
