FBT Fiber Optic Splitter Singlemode SC UPC 1x2 1x4 1x8 1x16 Steel Tube ABS Package
FBT Fiber Optic Splitter Singlemode SC UPC 1X2 1X4 1X8 1X16 Steel Tube Package and ABS Package
FBT Fiber Optic Splitter is a type of optical power management device that is fabricated using Fused Biconical Tape technology
1: Feature
Low excess loss
Various coupling ratio
Environment stable
Singlemode and multimode available
2: Application
Long-haul telecommunication s
CATV systems&Fiber optic sensors
Fiber optic communication system
Local area network
3:Specification
| Parameters | 1X2 | 1X4 | 1X8 | 1X16 | 1X32 |
| Operating Wavelength(nm) | 1310/1490/1550 | ||||
| Fiber Type | G657A1 or customer specified | ||||
| Insertion loss (db)(P/S Grade) | 3.8/4.0 | 7.1/7.3 | 10.2/10.5 | 13.5/13.7 | 17/17.4 |
| Loss Uniformity(db) | 0.4 | 0.6 | 0.8 | 1.2 | 1.5 |
| Polarization Dependent loss(db) | 0.2 | 0.2 | 0.2 | 0.25 | 0.3 |
| Return loss (db)(P/S Grade) | 55/50 | 55/50 | 55/50 | 55/50 | 55/50 |
| Derectivity(db) | 55 | 55 | 55 | 55 | 55 |
| Wavelength Dependent loss (db) | 0.3 | 0.3 | 0.3 | 0.5 | 0.5 |
| Temperature Stability(-40~85℃) |
0.4 | 0.4 | 0.4 | 0.5 | 0.5 |
| Operating Temperature(℃) | |||||
| Storage Temperature(℃) | |||||
| Device Dimension (mm) | 40X4X4 | 40X4X4 | 40X4X4 | 50X4X4 | 50X7X4 |
| Module Dimension (mm) | 100X80X10 | 100X80X10 | 100X80X10 | 120X80X18 | 140X115X18 |
| Mini-Module Dimension (mm) | 50X7X4 | 50X7X4 | 50X7X4 | 60X12X4 | 80X20X6 |

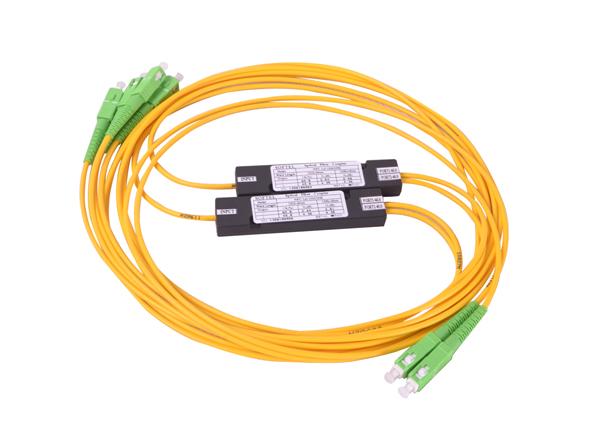

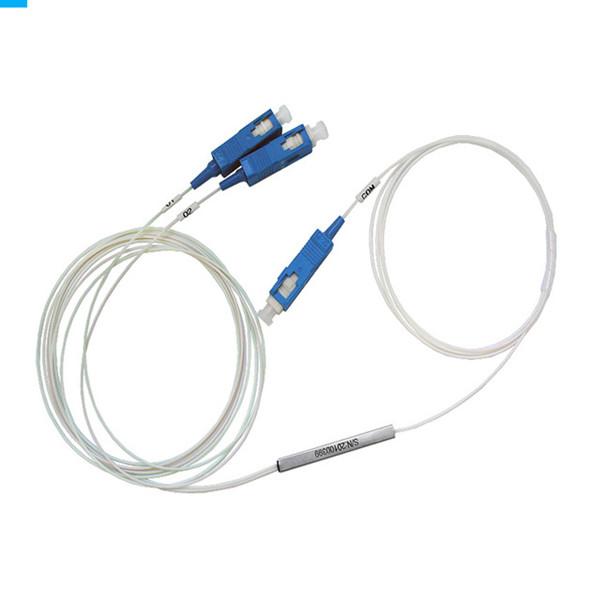

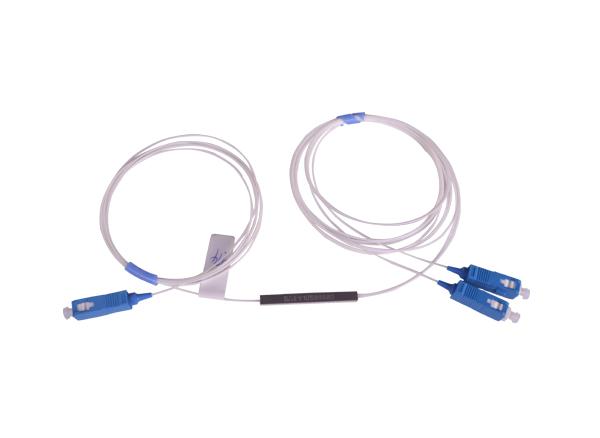

4: Product Pictures
5:Company information
6: RFQ
1.Why choose TTI FIBER ?
(1)Professional manufacturer: Low MOQ, free samples are available.
(2)Quality assurance:Stable high quality.
(3)Customers solutions:Quick.
(4)Win-Win Price:Save much costs, bring more benefits for customers.
2.Do you accept OEM,ODM?
Yes, we accept them .
3.Can you print our LOGO?
Sure, Your LOGO can be printed on the boxes , or products.
4.What's the method of shipment?
We accept all shipment , such as Delievery,ocean transport, land transport , airport transport.
5.What's the Payment?
We accept all payments , such as LC,TT,DP,DA,Paypal,
