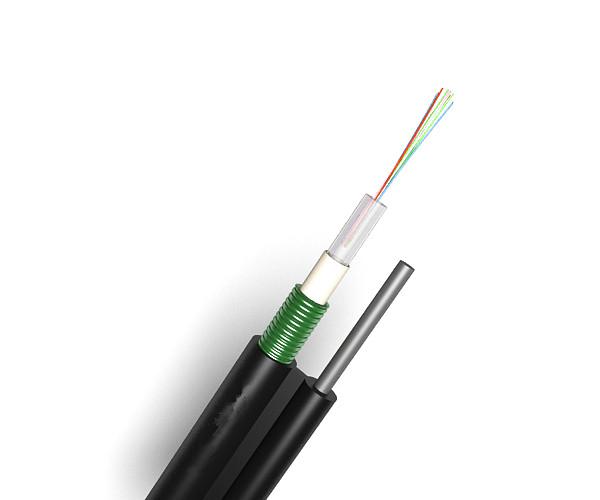

Figure 8 Fiber Optic Cable Steel Wire Stranded Self Supporting Aerial For LAN communication
Price:
Negotiable
MOQ:
1000
Delivery Time:
5-8 working days
Brand:
TTI Fiber
Product Description
Figure 8 Fiber Optic Cable Steel Wire Stranded Self-Supporting Aerial Used For LAN communication
Characteristics
1.Non-metal strength has an excellent anti-electromagnet ability.
2. Loose tube design for good performance.
3. Excellent mechanical and environmental characteristics.
4. Good flexibility and bending performance.
5. Small outer diameter,light weigh easy to installation.
6. 100% cable core filling.
7. Aluminum tape moisture barrier.
Specification
| No. of fibers | 6 | 12 | 24 | 48 | 72 | 96 | 144 |
| No. of tubes | 1 | 2 | 4 | 4 | 6 | 8 | 12 |
| fibers per tube | 6 | 6 | 6 | 12 | 12 | 12 | 12 |
| Filler Rod | 4 | 3 | 1 | 1 | 0 | 0 | 0 |
| Tube diameter (±0.1mm) | 2.0 | 2.0 | 2.0 | 2.0 | 2.0 | 2.0 | 2.0 |
| Thickness of loose tube (±0.05mm) |
0.3 | 0.3 | 0.3 | 0.3 | 0.3 | 0.3 | 0.3 |
| Outer diameter (±0.5mm) | 5.4X8.6 -15.0 |
5.4X8.6 -15.0 |
5.4X8.6 -15.0 |
5.4X9.8 -16.5 |
5.4X10.8 -17.5 |
5.4X12.2 -19.0 |
5.4X14.9 -22.0 |
| Thickness of out diameter (±0.1mm) |
1.6 | 1.6 | 1.6 | 1.6 | 1.6 | 1.7 | 1.7 |
| Loose tube | Material | PBT | Color | standard spectrum | |||
| Water blocking system |
Material | Filling gel / Water blocking tape | |||||
| Central strength member |
Material | FRP | Diameter | 1.4(6-48) 2.0(72-144) |
|||
| Mental strength member |
Material | Stranded steel wire | Type | 1.0mm*7 | |||
| Armor | Material | Aluminum tape | |||||
| Gallus | Material | PE | Size (h*w) |
2.5*1.5mm | |||
| Out sheath | Material | PE | Color | Black |
|||
Application
• Adopted to outdoor distribution.
• Suitable for aerial, pipeline laying method.
• Long distance and local area network communication.
