Outdoor GYFTY 12 24 48 96 Core G652D Fiber Optical Cable With FRP Strength Member
Outdoor GYFTY G652D 12 24 48 96 Core Fiber Optical Cable with FRP Strength Member
1. Specification:

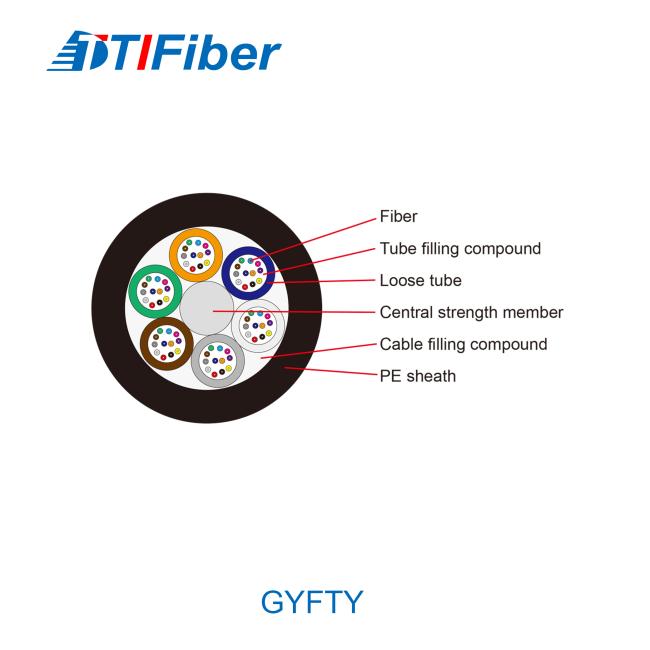

The fibers, 250μ m, are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water-resistant
filling compound. A Fiber Reinforced Plastic (FRP) locates in the center of core as a non-metallic strength member. The tubes (and
fillers) are stranded around the strength member into a compact and circular core. After the cable core is filled with the filling
compound to protect it from water ingress, the cable is completed with a PE sheath.
| G652D | G655 | 50/125μm | 62.5/125μm | ||
| Attenuation(+20deg C) | @850nm | ≤ 3.0dB/KM | ≤ 3.0 dB/KM | ||
| @1300nm | ≤ 1.0dB/KM | ≤ 1.0 dB/KM | |||
| @1310nm | ≤ 0.36 dB/KM | -- | |||
| @1550nm | ≤ 0.22 dB/KM | ≤0.23dB/km | |||
| Bandwidth(Class A) | @850nm | ≥ 500 MHz-KM | ≥200 MHz-KM | ||
| @1300nm | ≥1000 MHz-KM | ≥600 MHz-KM | |||
| Numerical Aperture | 0.200±0.015NA | 0.275±0.015NA | |||
| Cable Cut-off Wavelength λcc | ≤1260nm | ||||
2. Feature:
1. Low dispersion and attenuation.
2. Proper design, precise control for fiber excess length and distinct stranding process render the cable excellent mechanical and
environmental characteristics.
3. Anti-electromagnetism ability.
4. Small cable diameter, light cable weight, easily to install.
3. Application:
- Frequent lightning area and anti electric field : The subway, tunnel
- Long-distance communication: Local trunk network & User network
- Duct and direct buried application
- Harsh environment

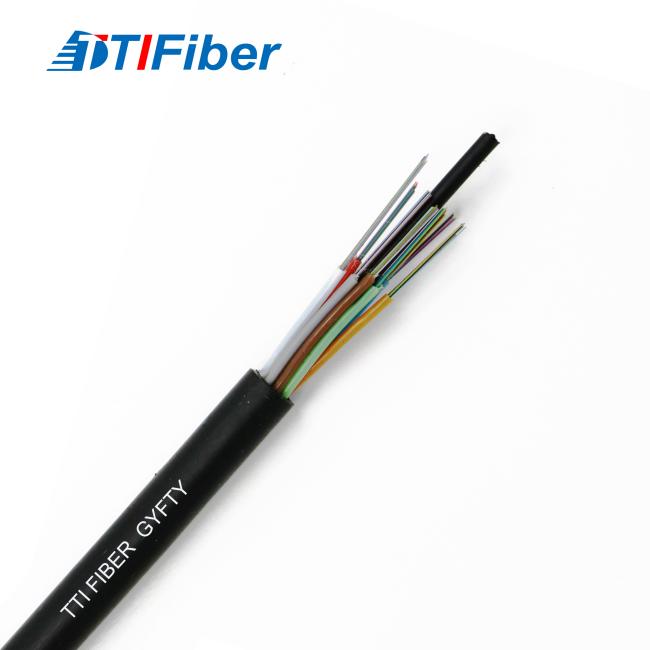

4. Product Picture:
5. FAQ:
1. Why choose TTI FIBER ?
(1) Professional manufacturer: Low MOQ, free samples are available.
(2) Quality assurance:Stable high quality.
(3) Customers solutions:Quick.
(4) Win-Win Price:Save much costs, bring more benefits for customers.
2. Do you accept OEM,ODM?
Yes, we accept them .
3. Can you print our LOGO?
Sure, Your LOGO can be printed on the boxes , or products.
4. What's the method of shipment?
We accept all shipment , such as Delievery,ocean transport, land transport , airport transport.
5. What's the Payment?
We accept all online payments .
