12 Core Strength Member FRP GYFXY G652D Fiber Cable
Optic Fiber Cable Strength member GYFXY 12 core G652D Fiber Cable
1. Specification:

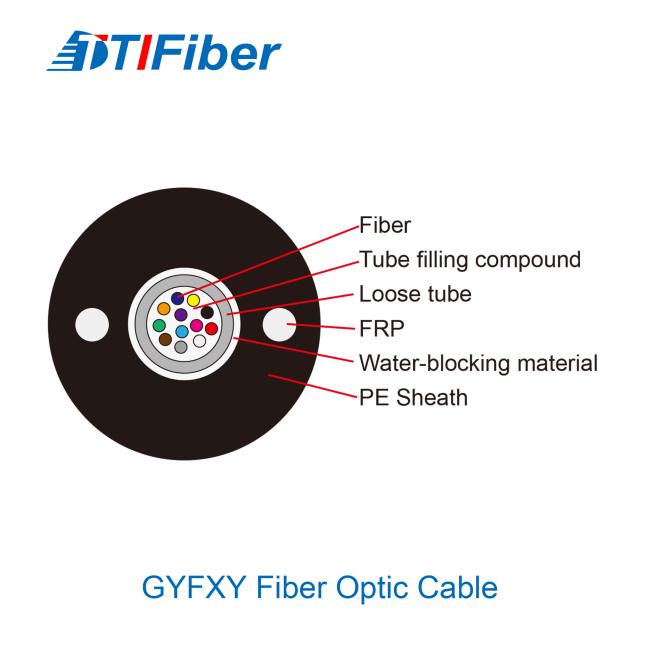

The cable consists of a single central gel filled uni-tube containing individually colour coded 250 μm buffered fibers. This tube is embedded in a water blocking E-glass yarn, and over sheathed with PE/PVC/LSZH (Low Smoke Zero Halogen) outer jacket. The jacket is flame retardant, UV stabilised and extremely resistant to the ingress of moisture.
A choice of multimode and single mode fiber types and specifications are offered with fiber counts from four to twenty four in the standard range.
2. Feature:
1.LAN Backbones
2.Networks with mixed indoor and outdoor cabling
3.Flooded duct
4.Premises distribution system
| Fiber Type | Fiber attenuation(+20℃) | Band Width | Numerical aperture | Cut-off wavelength of optic fiber cable | ||||
| @850nm | @1300nm | @1310nm | @1550nm | @850nm | @1300nm | |||
| G.652 | --- | --- | ≤0.36dB/km | ≤0.22dB/km | --- | --- | --- | ≤1260nm |
| G.655 | --- | --- | ≤0.40dB/km | ≤0.23dB/km | --- | --- | --- | ≤1450nm |
| 50/125µm | ≤3.3dB/km | ≤1.2dB/km | --- | --- | ≥500MHz·km | ≥500MHz·km | 0.200±0.015 NA | --- |
| 62.5/125µm | ≤3.5dB/km | ≤1.2dB/km | --- | --- | ≥200MHz·km | ≥500MHz·km | 0.275±0.015 NA | --- |
3. Application:
- Frequent lightning area and anti electric field : The subway, tunnel
- Long-distance communication: Local trunk network & User network
- Duct and direct buried application
- Harsh environment

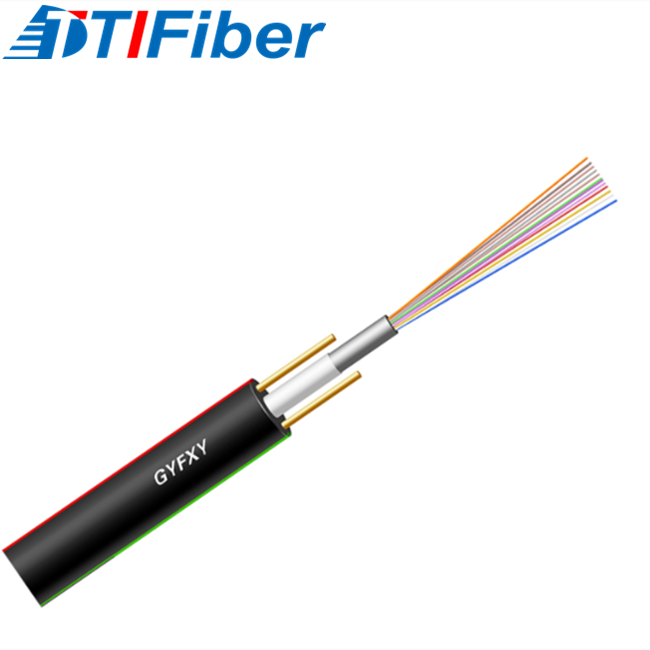

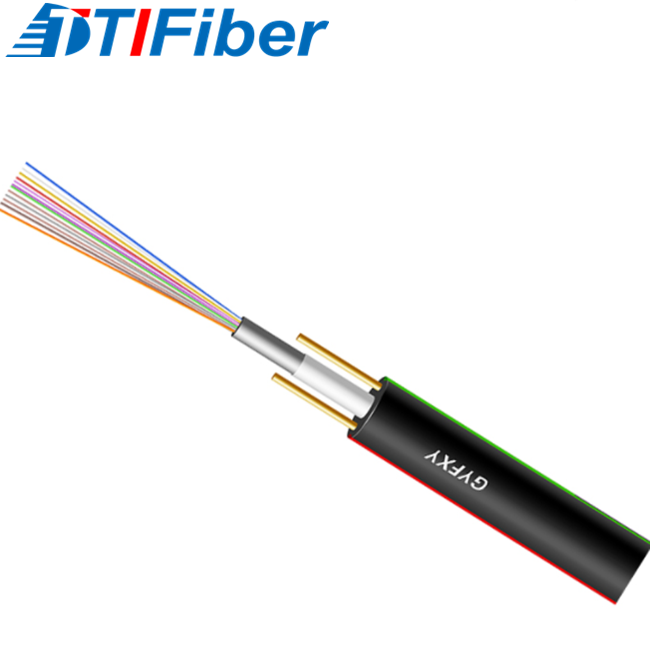

4. Product Picture:
