4 6 8 12 16 24 Core GYFY G652D Duct Fiber Optic Cable With PE Sheath
4 6 8 12 16 24 Core GYFY Duct PE Sheath Fiber Optic Cable
1. Specification:

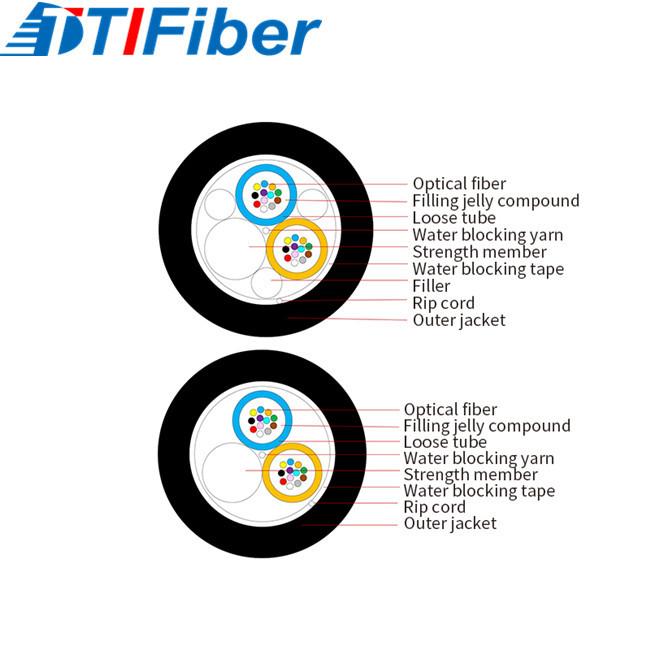

The optical fiber is 250µm, the loose tube is made of high modulus plastic, which is filled with waterproof compound. The center of the cable core is a metal reinforced core, Tubes (and fillers) are stranded around the strength member into a compact and round cable core, which is filled with the waterproofing compound to protect it from water ingress. Plastic coated aluminum tape (APL) is longitudinally wrapped and extruded into a polyethylene sheath to form a cable.
2. Feature:
1. LAN Backbones
2. Networks with mixed indoor and outdoor cabling
3. Flooded duct
4. Premises distribution system
| Fiber Type | Fiber attenuation(+20℃) | Band Width | Numerical aperture | Cut-off wavelength of optic fiber cable | ||||
| @850nm | @1300nm | @1310nm | @1550nm | @850nm | @1300nm | |||
| G.652 | --- | --- | ≤0.36dB/km | ≤0.22dB/km | --- | --- | --- | ≤1260nm |
| G.655 | --- | --- | ≤0.40dB/km | ≤0.23dB/km | --- | --- | --- | ≤1450nm |
| 50/125µm | ≤3.3dB/km | ≤1.2dB/km | --- | --- | ≥500MHz·km | ≥500MHz·km | 0.200±0.015 NA | --- |
| 62.5/125µm | ≤3.5dB/km | ≤1.2dB/km | --- | --- | ≥200MHz·km | ≥500MHz·km | 0.275±0.015 NA | --- |
3. Application:
- Frequent lightning area and anti electric field : The subway, tunnel
- Long-distance communication: Local trunk network & User network
- Duct and direct buried application
- Harsh environment

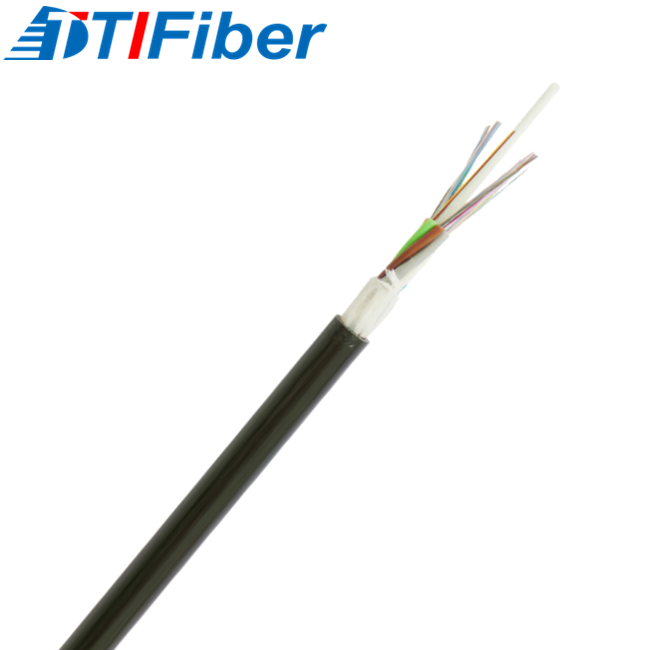

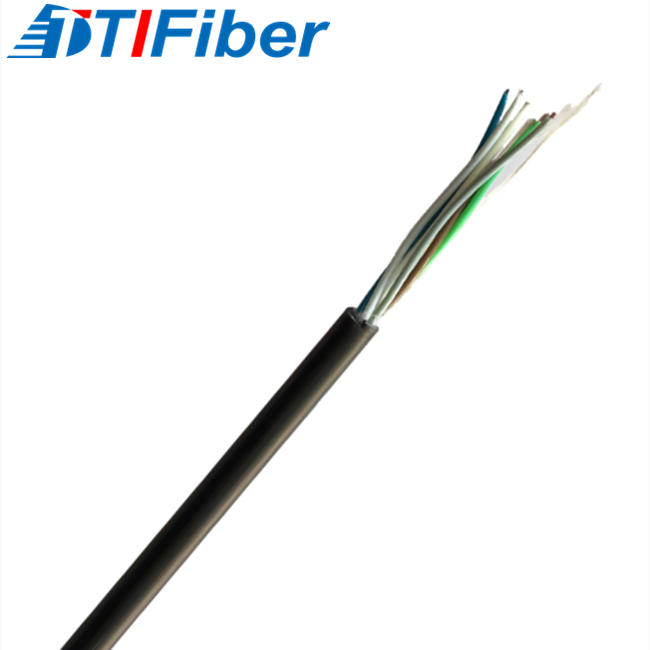

4. Product Picture:
