Outdoor GYXFTW Aramid Yarn FRP Armoured Fiber Optic Cable For FTTH
FTTH Outdoor GYXFTW Aramid Yarn FRP Armoured Fiber Optic Cable
1. Specification:

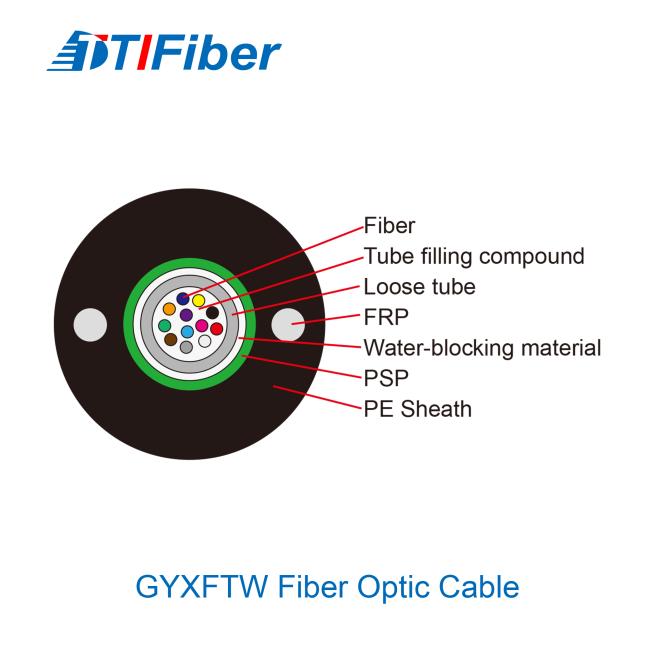

The fibers, 250µm, are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water-resistant filling compound. A steel wire locates in the center of core as a metallic strength member. The tubes (and fillers) are stranded around the strength member into a compact and circular cable core. After an Aluminum Polyethylene Laminate (APL) moisture barrier is applied around the cable core, this part of cable accompanied with the stranded wires as the supporting part are completed with a polyethylene (PE) sheath to be figure 8 structures.
2. Feature:
Outdoor fiber optic cable with loose tube constructions are built to withstand adverse environments and provide the maximum fiber protection. These cables perform exceptionally well in wet conditions and during extreme temperature cycles.
They can be installed in ducts, direct buried and aerial/lashed, providing the flexibility needed to meet the demands of campus backbones and other outside plant requirements.
we manufactures a wide range of cables from 2–144fibers with a variety of designs to meet the demands of most installation conditions.Only the highest quality materials are used in our fiber optic cables to ensure that the cable strength and optical integrity are not compromised. Rugged jacket materials and the addition of armor provide the right level of protection.
| G652D | G655 | 50/125μm | 62.5/125μm | ||
| Attenuation(+20deg C) | @850nm | ≤ 3.0dB/KM | ≤ 3.0 dB/KM | ||
| @1300nm | ≤ 1.0dB/KM | ≤ 1.0 dB/KM | |||
| @1310nm | ≤ 0.36 dB/KM | -- | |||
| @1550nm | ≤ 0.22 dB/KM | ≤0.23dB/km | |||
| Bandwidth(Class A) | @850nm | ≥ 500 MHz-KM | ≥200 MHz-KM | ||
| @1300nm | ≥1000 MHz-KM | ≥600 MHz-KM | |||
| Numerical Aperture | 0.200±0.015NA | 0.275±0.015NA | |||
| Cable Cut-off Wavelength λcc | ≤1260nm | ||||
3. Application:
- Frequent lightning area and anti electric field : The subway, tunnel
- Long-distance communication: Local trunk network & User network
- Duct and direct buried application
- Harsh environment

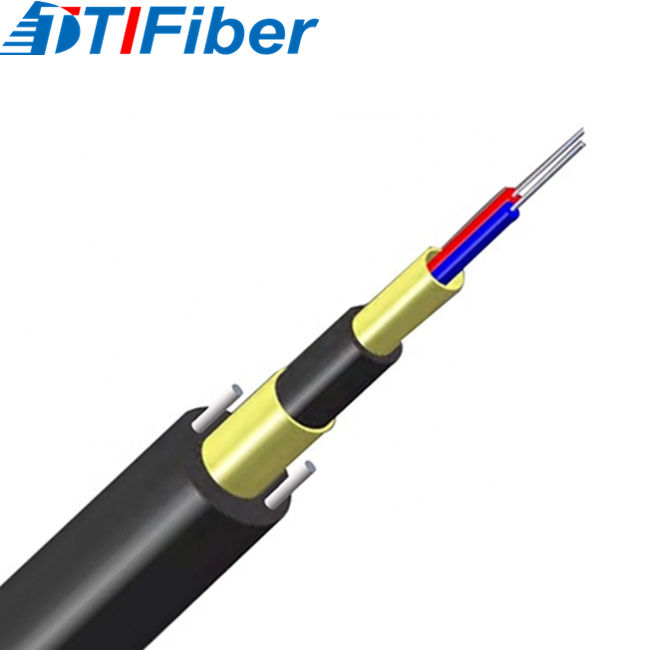

4. Product Picture:
5. FAQ:
1. Why choose TTI FIBER ?
(1) Professional manufacturer: Low MOQ, free samples are available.
(2) Quality assurance:Stable high quality.
(3) Customers solutions:Quick.
(4) Win-Win Price:Save much costs, bring more benefits for customers.
2. Do you accept OEM,ODM?
Yes, we accept them .
3. Can you print our LOGO?
Sure, Your LOGO can be printed on the boxes , or products.
4. What's the method of shipment?
We accept all shipment , such as Delievery,ocean transport, land transport , airport transport.
5. What's the Payment?
We accept all online payments .
