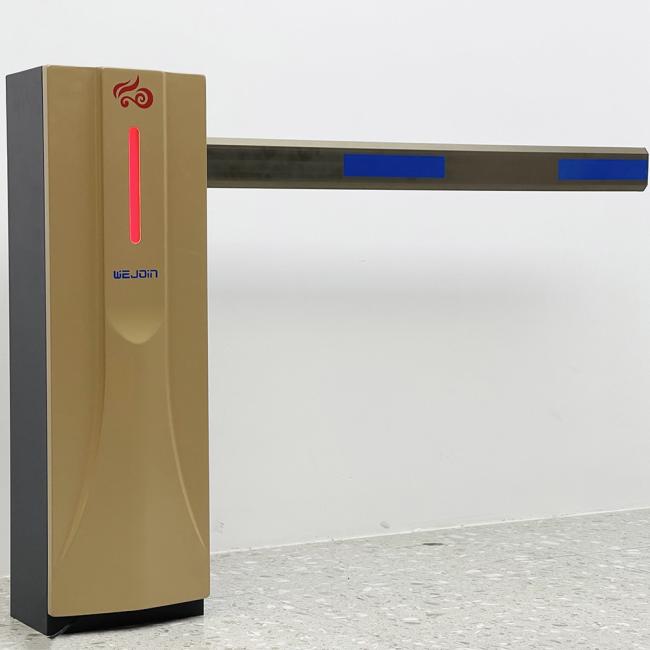

DZE4 Higher Stability Parking Lot Barrier Gate Two Fence Boom 4.5m 6s Non Spring
DZE4 Higher Stability Two fence boom 4.5m 6s non-spring barrier gate
|
Barrier Types |
Description (Boom Length=L, Meters=M, Seconds=S) |
|
Barrier gate with fence boom |
1. Two-levels, L≤3M, up speed 4S. 2. Two-levels, L≤3.5M, up speed 5S. 3. Two-levels, L≤4.5M, up speed 6S. 4. Three-levels, L≤3M, up speed 5S. 5. Three-levels, L≤3.5M, up speed 6S. |
Boom Barrier Basic Features:
1. No spring design, eliminating the need for mechanical leveling, maintenance-free.
2. With auto-reversing on the obstruction function, the boom will auto-reverse when meeting obstacles.
3. Support external radar, loop detector, infrared photocell anti-smashing function, and built-in DC 12V power output, which can be used for external radar power supply.
4. Support RS485 communication or RS485 offline connection.
5. DC24V power supply is optional.
6. Boom can be chosen from 3 meters to 6 meters, and barrier closing time is also arranged from 1.8 seconds to 6 seconds.
7. The boom will not fall off when power off, high safety.
Common Malfunctions and Solutions
Malfunction Phenomenon: The controller displays IDLE
A: Possible Causes: The motor sensor plug is not plugged in.
Solution: Insert the motor sensor plug well.
B: Possible Causes: Motor sensor failure.
Solution: Replace the motor.
