Low Noise Parking Barrier for Residential Area with Auto-Reversing and Motorcade Passing Mode
Low Noise Parking Barrier for Residential Area with Auto-Reversing and Motorcade Passing Mode
Boom Barrier Basic Features:
1. Motor drive, with connecting rod drive mechanism, balance spring, stable and reliable operation, motor life up to 2.5 million times or more, spring life of 500,000 times.
2. The whole series is equipped with rebound function, when the boom is blocked in the process of falling, it will rebound automatically.
3. Support external radar, coil, infrared anti-smash function, built-in DC 12V power output, can be used for external radar power supply.
|
Type |
Description (Boom Length=L, Meters=M, Seconds=S) |
|

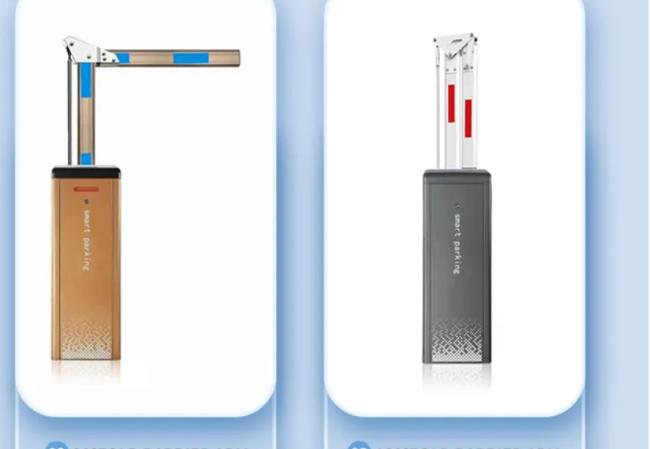

Barrier gate with straight boom |
L≤3M, up speed 1.5S. L≤4M, up speed 3S. L≤4.5M, up speed 4S. L≤5M, up speed 5S. L≤6M, up speed 6S. |
|
Barrier gate with folding boom |
L≤3M (1.5+1.5M), up speed 3S. L≤4M (2+2M), up speed 4S. L≤5M (2.5+2.5M), up speed 6S. |
|
Barrier gate with fence boom |
Two-levels, L≤3M, up speed 4S. Two-levels, L≤3.5M, up speed 5S. Two-levels, L≤4.5M, up speed 6S. Three-levels, L≤3M, up speed 5S. Three-levels, L≤4M, up speed 6S. |
Barrier Gate Technical Data
1. Working temperature (motor): -35℃~ + 70℃
2. Power supply input voltage: AC100~264V
3. Controller input voltage: DC24V±10%, 7.5A
4. Motor power: 180W
5. Relative humidity: 30%~80%, no condensation
6. Distance of remote control: open and undisturbed, L≤50M
7. Running speed: 1.5~6 seconds adjustable
8. MTBF: 3,000,000 times
