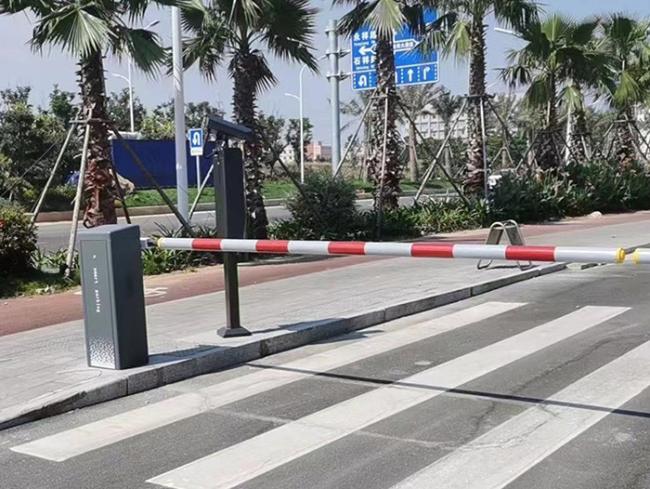

Flexible Straight Boom Parking Barrier Gate for Parking Lot Entrance and Exit Control Systems
High-Performance Motor Drive Parking Barrier Gate with Straight Boom for Parking Lot Entrance and Exit Control Systems
Automatic Barrier Gate Brief Introduction
The product consists of four parts: cabinet, transmission mechanism, control unit, and boom. It distinguishes between left-installed and right-installed, and it is used in parking lot entrance and exit control systems.
This product is divided into three types: barrier gate with straight boom, barrier gate with folding boom, and barrier gate with fence boom.
Barrier Gate Technical Data
1. Working temperature (motor): -35℃~ + 70℃
2. Power supply input voltage: AC100~264V
3. Controller input voltage: DC24V±10%, 7.5A
4. Motor power: 180W
5. Relative humidity: 30%~80%, no condensation
6. Distance of remote control: open and undisturbed, L≤50M
7. Running speed: 1.5~6 seconds adjustable
8. MTBF: 3,000,000 times
Boom Barrier Basic Features:
1. DC24V brushless motor, equipped with connecting rod transmission mechanism and balance spring, low power consumption, high efficiency, and lower noise.
2.With auto-reversing on obstruction function and delay auto-closing function, support counting function and motorcade passing mode.
3. Support external radar, loop detector, infrared photocell anti-smashing function, built-in DC 12V power output, can be used for external radar power supply.
4. Support RS485 communication or RS485 off-line connection.
5. DC24V power supply is optional.
|
Model |
WJDZE-BL (speed 1.5~6s adjustable) |
|||||||
|
Running Speed |
1.5s |
3s |
4s |
5/6s |
6s |
6s |
6s |
6s |
|
Boom-Type |
Straight |
Straight |
Straight |
Straight |
90° Folding |
180° Folding |
2 Fence |
3 Fence |
|
Max Boom Length |
3m |
4.5m |
5m |
6m |
5m |
4m |
4.5m |
4m |
|
Input Voltage |
AC100~264V |
|||||||
|
Frequency |
50/60HZ |
|||||||
|
Motor Voltage |
DC24V |
|||||||
|
Enclosure Rating |
Ip54 |
|||||||
|
Working Temperature |
-35℃~ + 70℃ |
|||||||
|
MTBF |
3,000,000 times |
|||||||
|
Max Motor Power |
180W |
|||||||
|
Max Motor Speed |
24r/min |
|||||||
