Durable Steel Parking Barrier Gate with Straight Folding Fencing Boom for Smooth Entrance and Exit Control Systems

Price Negotiable

Price: negociate

MOQ: 1 set

Delivery Time: 7 working days

Brand: WEJOIN

Product Description

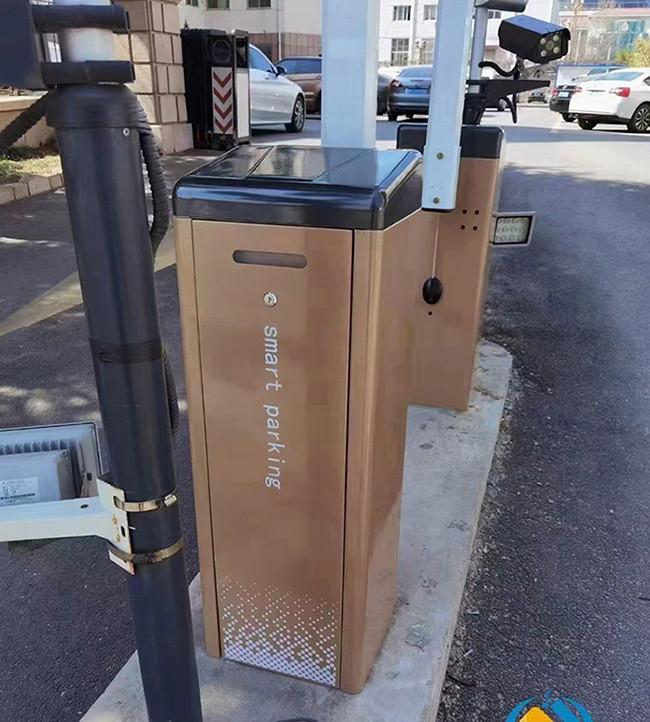

Parking Barrier Gate with Fence Boom for Parking Lot Entrance and Exit Control Systems

Automatic Barrier Gate Brief Introduction

The product consists of four parts: cabinet, transmission mechanism, control unit, and boom. It distinguishes between left-installed and right-installed, and it is used in parking lot entrance and exit control systems.

This product is divided into three types: barrier gate with straight boom, barrier gate with folding boom, and barrier gate with fence boom.

Boom Barrier Basic Features:

1. DC24V brushless motor, equipped with connecting rod transmission mechanism and balance spring, low power consumption, high efficiency, and lower noise.

2. With auto-reversing on obstruction function and delay auto-closing function, support counting function and motorcade passing mode.

3. Support external radar, loop detector, infrared photocell anti-smashing function, built-in DC 12V power output, can be used for external radar power supply.

4. Support RS485 communication or RS485 off-line connection.

5. DC24V power supply is optional.

Barrier Gate Technical Data

1. Working temperature (motor): -35℃~ + 70℃

2. Power supply input voltage: AC100~264V

3. Controller input voltage: DC24V±10%, 7.5A

4. Motor power: 180W

5. Relative humidity: 30%~80%, no condensation

6. Distance of remote control: open and undisturbed, L≤50M

7. Running speed: 1.5~6 seconds adjustable

8. MTBF: 3,000,000 times

Intelligent Barrier Technical Data:

Model	WJDZE-BL (speed 1.5~6s adjustable)
Running Speed	1.5s	3s	4s	5/6s	6s	6s	6s	6s
Boom-Type	Straight	Straight	Straight	Straight	90° Folding	180° Folding	2 Fence	3 Fence
Max Boom Length	3m	4.5m	5m	6m	5m	4m	4.5m	4m
Input Voltage	AC100~264V
Frequency	50/60HZ
Motor Voltage	DC24V
Enclosure Rating	Ip54
Working Temperature	-35℃~ + 70℃
MTBF	3,000,000 times
Max Motor Power	180W
Max Motor Speed	24r/min
