Professional Manufacture Straight Arm Barrier Gate with Black Rubber for High Traffic
Professional Manufacture Straight Arm Barrier Gate with Black Rubber for High Traffic
Parking Barrier Gate Quick Detail

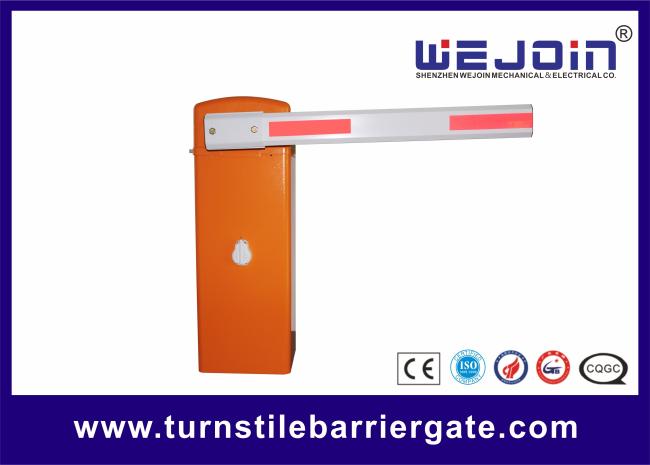

WEJOIN Mid-Grade DC Barrier Gate WJDZ04VF
DC variable frequency control motor
Higher Stability, Longer Service Life, and Easier Operation
Parking Barrier Gate Application
Suitable for indoor as well as an outdoor parking area
Parking lots, goods yard, railway crossing, commercial premises, apartment block access shopping malls, hospitals, stadiums, business centers, etc.
Parking Barrier Gate Functions & Features
1. DC variable frequency control motor drive, equipped with connecting rod transmission mechanism, balance spring, stable and reliable operation, motor life up to 4.5 million times, spring life 500,000 times.
2. Auto reversing on obstacle function, the boom will auto reverse when it meets obstacle during the closing process.
3. Support external radar, coil, infrared anti-smashing function, built-in DC 12V power output, can be used for external radar power supply.
4. Support RS485 communication or RS485 off-line connection.
5. Optional Bluetooth module, convenient debugging of barriers through small programs.
6. Large LCD screen display, English visual menu, easy function selection and debugging.
7. Left-installation and right-installation can be changed.
8. Speed 1.5~6 seconds can be adjusted.
Parking Barrier Gate Technical Data
|
Model |
WJDZ04VF (speed 1.5~6s adjustable) | ||||
| Running Speed | 1.5s-6s | 6s | 6s | 6s | 6s |
| Boom-Type | Straight | 90° Folding | 180° Folding | 2 Fence | 3 Fence |
| Max Boom Length | 3-6m | 5m | 4m | 4.5m | 4m |
| Housing Dimension | 336*325*1030MM, 335*285*920MM | ||||
| Input Voltage | AC100-265V | ||||
| Frequency | 50/60HZ | ||||
| Motor Voltage | DC24V | ||||
| Enclosure Rating | IP54 | ||||
| Working Temperature | -30℃~ + 70℃ | ||||
| MTBF | 4000000 times | ||||
| Traffic Flow Application | 3000 times/ 24 hours | ||||
| Max Motor Power | 180W | ||||
| Max Motor Speed | 500r/min | ||||
| Max Torque | 260N.m | ||||
