10 Years Warranty Construction Aluminum Curtain Wall Profiles Length 5.85m
Detailed Product Description
Description:
1) Material: 6063 6060 6463 T5 T6 T66
2) Surface: Mill Finished, Anodizing, Electrophoresis, Powder Coating ,Polishing, Wooden grain, Sand Blasting
3) Color: Clear Satin, Bronze, Black, Golden, Silver, other colors for Powder Coating
4) MOQ: 1ton. Usually 12 tons for a 20 feet container; 24 tons for a 40 feet container.
5) Length:
For Anodizing and Electrophoresis: Maximum 6.8 Meters
For Powder Coating : Maximum 12 Meters
6) Packing:
A) EPE, waterproof paper wrapped in small bundles.
B) Paper interleave each piece and packing in wooden box and finally on Steel Rack to pull into container
7) Sample delivery: Two weeks (one week for mould +one week making sample)
8) Sample design: It is better we can get your drawing or sample, we mainly make according to your design, and we can keep confidential for your design.
9) Maximum extruder machine: 3500 tons; Minimum extruder machine: 500 tons
Primary Technical Data
1) Chemical composition
|
Alloy |
Si |
Mg |
Fe |
Cu |
Mn |
Zn |
Cr |
Ti |
|
6063 |
0.2~0.6 |
0.45~0.90 |
<0.35 |
<0.10 |
<0.10 |
<0.10 |
<0.10 |
<0.10 |
|
6060 |
0.3~0.6 |
0.35~0.60 |
0.1~0.3 |
~ |
<0.10 |
<0.15 |
<0.05 |
~ |
|
6463 |
0.2~0.6 |
0.45~0.90 |
<0.15 |
<0.20 |
<0.05 |
<0.05 |
~ |
~ |
|
6005 |
0.6~0.9 |
0.40~0.60 |
<0.35 |
<0.10 |
<0.10 |
<0.10 |
<0.10 |
<0.10 |
|
6061 |
0.4~0.8 |
0.80~1.2 |
<0.70 |
0.15~0.4 |
<0.15 |
<0.25 |
0.04~0.35 |
<0.15 |
|
6082 |
0.7~1.3 |
0.60~1.2 |
<0.50 |
<0.1 |
0.4~1.0 |
<0.20 |
<0.25 |
<0.10 |
|
6351 |
0.7~1.3 |
0.40~0.8 |
<0.50 |
<0.1 |
0.4~0.8 |
<0.20 |
~ |
<0.10 |
2) Mechanical property
|
Alloy |
Temper |
Tensile strength |
Yield strength |
Elongation |
|
6063 |
T5 |
≥ 160Mpa |
≥ 110Mpa |
≥ 8% |
|
T6 |
≥ 205Mpa |
≥ 180Mpa |
≥ 8% |
|
|
6061 |
T5 |
≥ 265Mpa |
≥ 245Mpa |
≥ 8% |
Equipment:
| Production lines | Quantity | Max product length |
| Extrusion press | 26 press range from 500MT to 2500MT | Circumcircle diameter≤2200mm |
| Anodizing and electrophoresis | 3 | ≤7500mm |
| Powder Coating | 2 | ≤8500mm |
| Wood Grain | 1 | ≤8500mm |
| Painting | 1 | ≤8500mm |
| Polishing | 1 | ≤6000mm |
| Brushing | 1 | ≤6000mm |

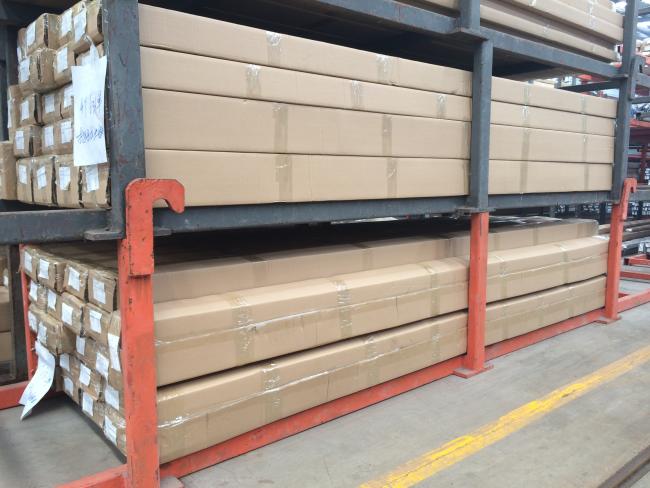

Package:
