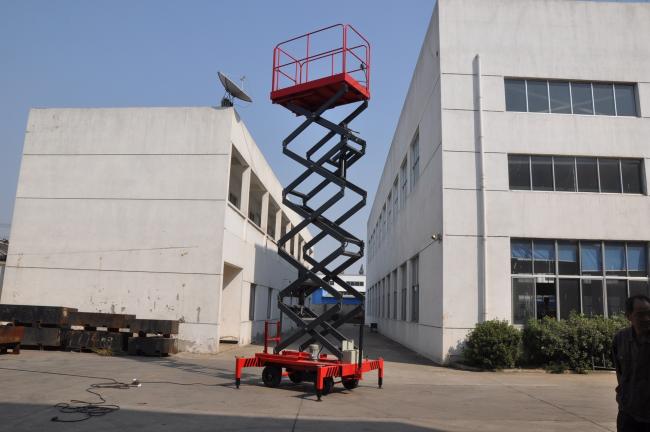

Electric Motorized Scissor Lift with 11m Platform Height for Shopping Mall
Electric Motorized Scissor Lift with 11m Platform Height for Shopping Mall
Quick Detail:
| Name | Scissor Lift with Motorized Device | Brand Name | Xunte |
| Loading Capacity | 450Kg | Platform Height | 11m |
| Platform Size | 2100mm*1150mm | Color | Red, Blue or Optional |
| Lifting Power | 3Kw | Motorized Power | 0.75kw |
Description:
This kind of mobile scissor lift is equipped with a motorized wheel, as the weight of the machine is heavy. with this device one person can move the machine very easily. it also have left and right turning control, and the brake is in the middle of the handler. To ensure the safety of the operator in height, if the machine is in lifting status, the motorized device can not be moved.
Main Features:
1. Pointing control of lifting up and down.
2. Manganese steel lifting arm in high strength with rectangle shape
3. Anti-skid floor in platform
4. The control panels are available on the platforms and ground.
5. Fine grinding cylinder in good sealing performance
6. Neatly folding guardrails make it easy to maneuver through doorways, into elevators and throughout other height-restricted areas.
Safety Precaution:
1. The operation voltage on the platform is 24V
2. Emergency stop button on the platform and ground
3. Auxiliary platform lowering
4. Telescopic legs on the chassis
5. Hose burst valve safety
6. Rain-proof design electric cabinet
7. Fence on the platform
Configurations:
- Electric system: Schneider contactor, SANLICO button, CHNT electrical
- Hydraulic System: Hycman brand power pack , sealing
- Scissor Arm Support: Hi-strength Manganese steel rectangle tube Q345 B
- Platform Surface : Antiskid checkered plate
- Tire: Ø600-9 Inflated tires
- High-pressure Oil Pip: Double wire hydraulic intensifier rubber hose :
- Battery: (DC12V,150AH)*4 with charger
Optional Configuration:
- Hydraulic Power Pack: Italy brand: Hydrapp/ Swiss brand: Bucher
- Extension Platform
- Rubber Solid Tire
- Flame Proof Control Cabinet
Applications:
1. Site: Work Shop, Theatre, Hospital, Library, Restaurant, Hotel Exhibition Hall etc.
2. Aerial Working Purpose: machine maintenance, painting, cleaning etc.
Why choose CHENLIFT Mobile Scissor Lift?
· High Quality
· Reasonable Price
· Good after Service
· 1 Year Warranty
· More Than 10 Years Experience
Communication with Customers
A: What is the difference from mobile scissor lift and mobile aluminum aerial work platform?
B: The main difference is from the structure and the material
The scissor lift is in scissor structure with steel material
The aerial work platform is in mast structure with aluminum material
A: How is that for quality control in your factory?
B: The quality control is strictly in accordance with ISO9001 quality management system. When the products are finished, the inspection is 100% executed strictly
1.Strict quality control system on the whole process of production
2.Imported key arts to ensure the high quality of our products
3.Advanced equipment and tools for examination and quality control
4.100% strict examining products before shipment
5.All the quality complaints and improvement requirements are always studied seriously, if reasonable, put into practice immediately.
A: What is the delivery time for your goods?
B: it is 30days after order confirmation
A: What spare parts that you can offer?
B: We provide following spare parts freely for your maintenance of the machine:
| Item | Quantity |
| Fuse | 3 |
| "O" Rubber Seals Φ11 | 3 |
| Wrench | 1 |
| Pressure Oiler | 1 |
| Cross Screwdriver | 1 |
| Straight Screwdrive | 1 |
A: How long is your quality guarantee period?
B: We have one year warranty.
