3m Height Semi-Electric Mini Portable Manual Pushing Scissor Lift For Warehouse
3m Height Semi-Electric Mini Portable Manual Pushing Scissor Lift for Warehouse
Main Feature
1.Pointing control of lifting up and down.
2.Manganese steel lifting arm in high strength with rectangle shape
3.Anti skid floor in platform
4 The control panels are available on the platforms and ground.
5. Fine grinding cylinder in good sealing performance
6.Neatly folding guardrails

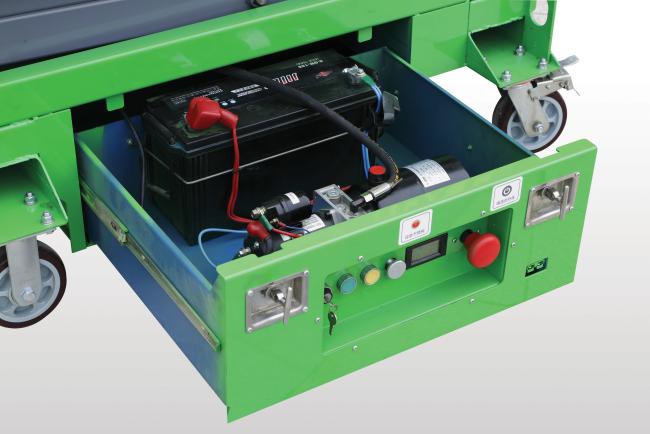

7. Battery and battery charger in bulit
8. Optional extension platform
Safety Precautions
1.The operation voltage on the platform is 24V
2.Emergency stop button on the paltform and ground
3.Auxiliary platform lowering
4.Hose burst valve safety
5.Rain-proof design electirc cabinet
6.Foldable fence on the platform
Parameters
| Loading Capacity | 240kg | ||||
| Maximum Height(rails folded up) | 3000mm | ||||
| Minimum Heght(rails folded down) | 1430mm | ||||
| Minimum Heightt(rails folded up) | 1830mm | ||||
| Platform Size | 1150*600mm | ||||
| Lifting Power | 0.8kw | ||||
| Power Voltage | DC12V | ||||
| Lifting Time | 34s | ||||
| Cylinder | Ф55(1Pc) | ||||
| Battery | 80Ah | ||||
| Battery Charger | 24V 12A | ||||
| Extension platfirm(optional) | 100mm | ||||
| Ground Clearance | 50mm | ||||
| Gear Pump | 4ml/r | ||||
| Total Weight | 495kg | ||||
| Measurement | 1320*760*1430mm |

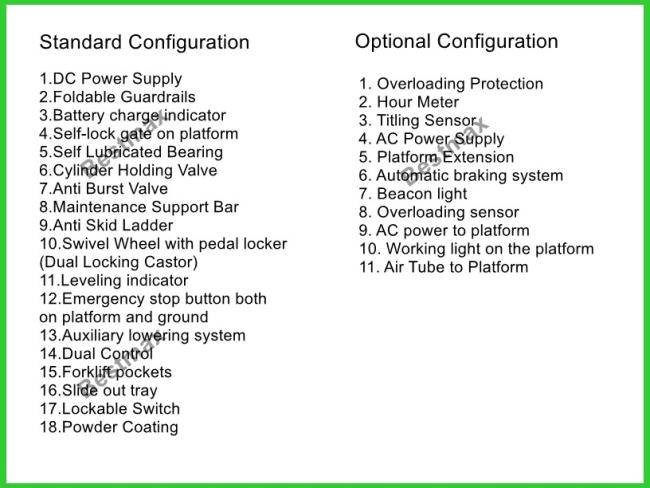

Configuration
| Electric system | Schneider contactor,SANLICO button,CHNT electrical | ||||
| Hydraulic System | Hycman power pack , sealing | ||||
| Scissor Arm Support | Hi-strength Maganese steel rectangle tube Q345 B | ||||
| Platform Surface | antiskid checkered plate | ||||

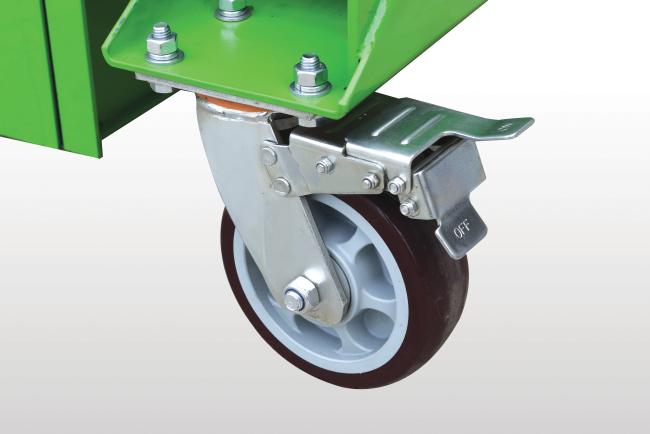

| Driving Tyre | 6inch and 8inch , two swivel and two fixed | ||||
|
High-pressure Oil Pipe |
double wire hydraulic intensifier rubber hose |
