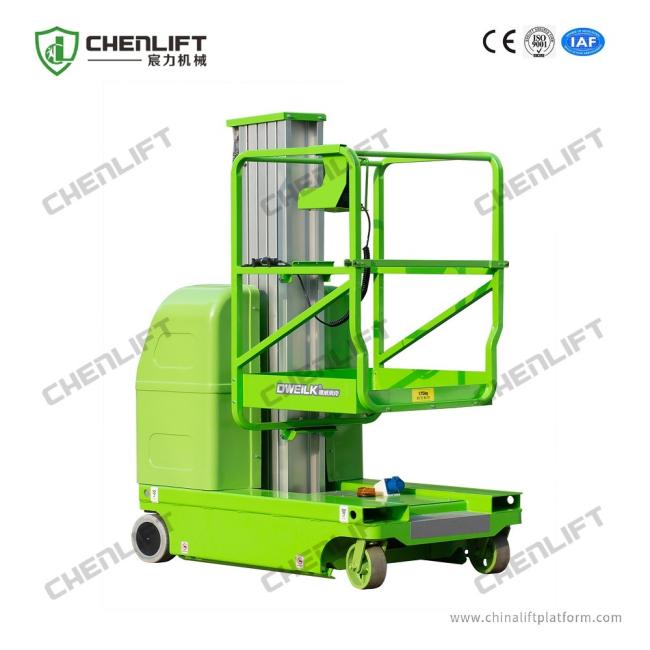

7.5 Meters Electrical Aerial Work Platform Single Mast Hydraulic Lift Equipment 125Kg Loading Capacity
7.5m Self-Propelled Aluminum Aerial Work Platform With Lift Capacity 125kg
Specification
| Model | MG750-1 |
| Lift capacity | 125kg |
| Platform height max | 7.5m |
| Stowed length | 1.36m |
| Stowed width | 0.79m |
| Stowed height | 1.98m |
| Platform size | 0.78*0.70m |
| Ground clearance | 0.05m |
| Wheelbase | 1.15m |
| Grade ability | 25% |
| Maximum working slope | 1.5° |
| Driving wheel | φ0.23*0.08m |
| Front tire | 8in |
| Driving motor | 2*24V/0.4kw |
| Lifting motor | 24V/2kw |
| Power source | 2ˣ12V/120Ah |
| Charger | 24V/12A |
| Weight | 880kg |
Standard Configurations
Proportional Control
Power Supply
Traceless Tyre
4*2 Driving
Automatic Brake System
Auxiliary Lowering System
Emergency Stop System
Anti-burst System
Tilting Protection System
Buzzer
Horn
Fork Lift Slots
Charging Protection System
Optional Configurations
AC Power to Platform
Platform Working Light
Extension Platform
Why choose Chen lift Self-Propelled Aluminum Aerial Work Platform?
· High Quality product
· Reasonable Price
· Easy payment mode
· Timely delivery
· Good after Service
· Client-centric approach
· One year warranty
Communication with Customers:
A: What is the difference from mobile scissor lift and mobile aluminum aerial work platform?
B: The main difference is from the structure and the material
The scissor lift is in scissor structure with steel material
The aerial work platform is in mast structure with aluminum material
A: How is that for quality control in your factory?
B: The quality control is strictly in accordance with ISO9001 quality management system. When the products are finished, the inspection is 100% executed strictly
- Strict quality control system on the whole process of production
- Imported key arts to ensure the high quality of our products
- Advanced equipment and tools for examination and quality control
- 100% strict examining products before shipment
- All the quality complaints and improvement requirements are always studied seriously, if reasonable, put into practice immediately.
A: What is the delivery time for your goods?
B: 30 days, after order confirmation
