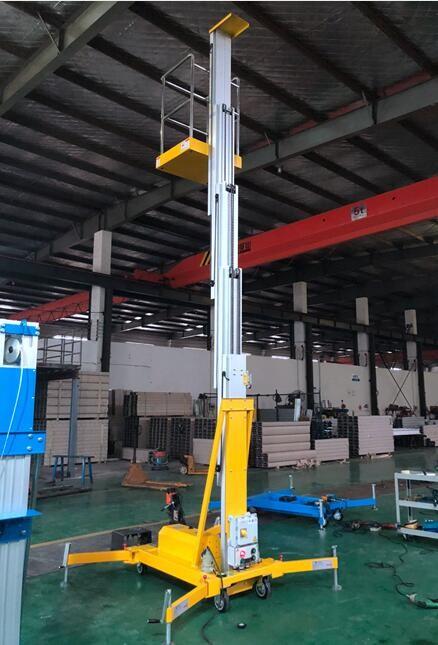

6 Meters Flame Proof Aluminum Aerial Work Platform Single Mast Man Lift

Quick Detail:

Description:

Explosion Proof Aerial Work Platform has these parts made into explosion proof type: electric box, socket and plug. And all the aluminum aerial work platform can be made into this explosion proof type. Besides that, Single Aluminum Aerial Work Platforms has light structure and small size.

Applications:

It is mainly used for the installation and maintenance of the narrow spaces such as star hotels, modern workshops, business hall, hotels, lobby, restaurant, railway stations, exhibition hall and shopping malls, it is a good helper for the equipment maintenance, paint decoration; Easily going through the regular doors and elevators, of low energy consumption, no pollution, no damage to the grounds. The lifting height ranges from 4m to 9m and lifting capacity varies from 100kg to 125kg.The power sources could be 220V, 380V or chargeable battery.

Main Features:

1. Most rigid aluminum alloy profile

2. Auxiliary platform lowering

3. Multi-guide pulley on mast

4. Durable base system

5. Chassis with level gauge

6. DC working power on the platform

7. Easily rolls through a narrow space

8. Emergency stop button

9. Over load protection

10. Built-in pressure release valve

11. Dual activated up/down switch

12. Locking Key Switch

Optional Configuration:

• Power Supply: 3phases/380V/50HZ; DC 24V
• Hydraulic Power Pack: Italy brand: Hydrapp/ Swiss brand: Bucher
• Extension Platform
• Flame proof electric cabinet
