Best Quality CE Approved High Speed New Design Hot Selling Automatic Soft Tube Filling and Sealing Tube Filling Machine
Price:
Negotiation
MOQ:
1set
Delivery Time:
25days
Brand:
LTPM China
Product Description
Feature highlights

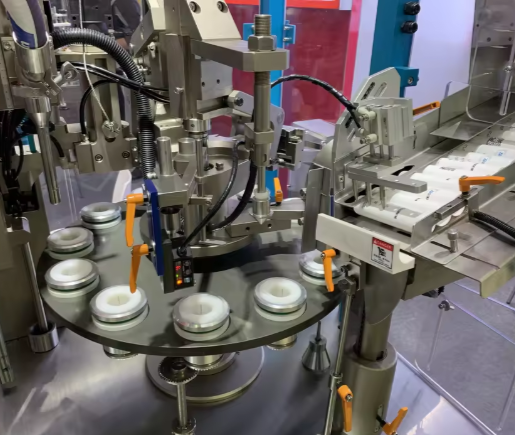

The Automatic Tube Filler and Sealer is designed for efficient filling and sealing of semi-fluid materials like cosmetics, beverages, and chemicals. With a capacity of 1800-3000 units/hour and adjustable filling accuracy up to 1%, it ensures reliable performance for manufacturing plants. Its compact dimensions (2440x900x2180mm) save space while the electric-driven system delivers energy-efficient operation. Engineers are available for overseas service, ensuring seamless integration and support. The machine's durable construction and user-friendly interface simplify maintenance and handling.
Features
Compact Design

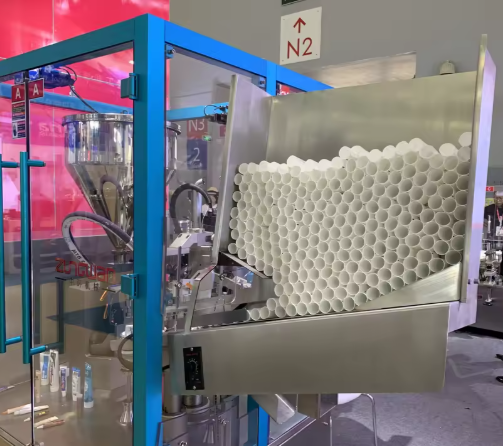

Automatic Tube Loader Feeding Tubes
Driving Parts Fully-closed
Intelligent Temperature Control and Cooling System
Easy to Operate and Adjust
316L Stainless Steel Contact Parts to meet GMP Standard
Safety Interlock Shutdown when Door is Open
Overload Protection Provided
Automated Working process from Tube Loading to Finished Products Output
Automatic Orientation Effected by Photoelectric Induction
Chiller
Date Coding Embossing
Material level control system
Optional Devices
Change Parts For Different diameter tubes
Pneumatic plunger type material feeding pump
Heating and warm keeping function for hopper
Mixing function for hopper
Technical Parameters
| Filling volume: 1-300ml/unit (Adjustable) |
| Filling accuracy:0.5% |
| Capacity:3600-4800unit/hour, Adjustable |
| Tube diameter: Φ12-60 mm |
| Tube length: 50-240 mm |
| Hopper volume: 40L |
| Power: 380/220V 50/60HZ, 3Phase |
| Air pressure: 0.4-0.6 MPa |
| Equipped motor: 1.1KW |
| Machine power: 5kw |
| Inner wind motor: 0.37kw |
| Convulsions motor: 0.37kw |
| Dimension: 2270×960×2100(mm) |
| Weight: About 1350 Kg |
