Food Grade Sea Salt Brown Sugar 1kg 2kg Pouch Filling Automatic Horizontal multifunctional packaging machine

Name: Food Grade Sea Salt Brown Sugar 1kg 2kg Pouch Filling Automatic Horizontal multifunctional packaging machine
Brand: Leadtop Pharmaceutical Machinery

Price Negotiable

Price: Consultation and detailed discussion

MOQ: 1 Set

Delivery Time: 35days

Brand: LTPM CHINA

Product Description

Products Description

Ce Certified Factory Price Premade Bag Frozen Food Fruits Frozen Dumpling Packing Machine

Equipped with stable filler, LTPMCHINA granule packaging machines could realize high filling accuracy, fast packing speed, easy to operate and adjust. It is widely applied in Pharmaceutical, food, Daily chemical etc. industries all over the world like United State, Europe, Southeast Asia, South Africa etc.with CE certification and tech. Patents.

Machine Data

Model	HorizonTop--210	HorizonTop--250	HorizonTop--360	HorizonTop--450	HorizonTop--500
Speed	30-50 bags/min	30-45 bags/min	15-35 bags/min	40-80 bags/min	3-15 bags/min
Accuracy	± 1.5%	± 1.5%	± 1.5%	± 1.5%	± 1.5%
Bag width	55-200mm	80-250mm	120-350mm	100~200mm	120-400mm
Bag height	100-280mm	100-280mm	100-280mm	100~280mm	150-500mm
capacity	1-5kg	1-5kg	1-5kg	1-5kg	1-15kg
Power	4kw	4kw	4kw	6kw	4kw
Gas consumption	0.6m3/min	0.6m3/min	0.6m3/min	0.6m3/min	0.6m3/min
Air pressure value	0.6MPa	0.6MPa	0.6MPa	0.6MPa	0.6MPa
Weight	1450kg	1700kg	2200kg	2000kg	800kg
Size(mm)	290010001390	350010001390	390010001390	380010001200	230010001390
Warranty	5 years	5 years	5 years	5 years	5 years

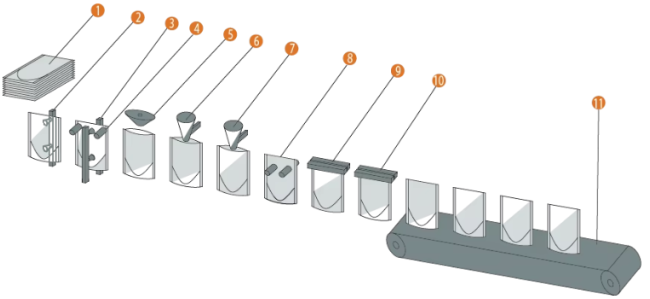

1.premade Pouch Stack 2.Flip-Out Pouch-Picking Unit 3.Pouch opening 4.Opening Assistance 5.Air Flushing 6.First Filling 7.Second Filling 8.Pouch Stretching 9.Top Seal I 10.Top Seal II 11.Outlet

The filling system is just for your reference. We will offer you best solution according to your product mobility, viscosity, density, volume, dimensions etc.

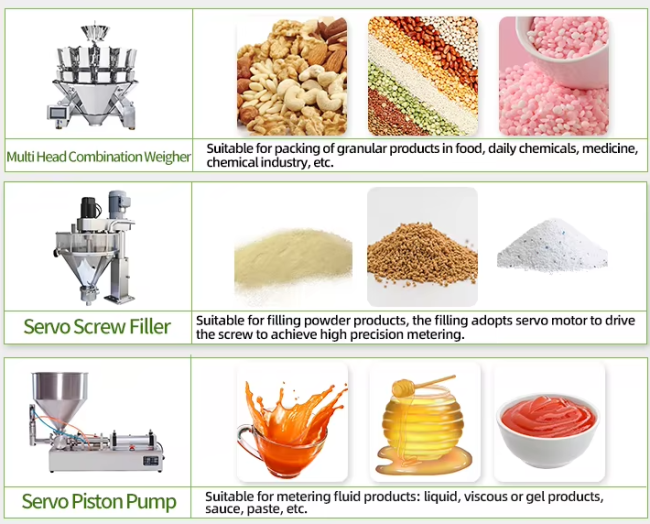

A. Powder Packing Solution
Servo Screw Auger Filler is specialized for powder filling such as nutrients powder, seasoning powder, etc.
B. Liquid Packing Solution
Piston Pump Filler is specialized for liquid filling such as water, juice, laundry detergent, ketchup etc.
C. Solid Packing Solution
Combination multi-head weigher is specialized for solid filling such as candy, nuts, pasta, dried fruit and vegetable etc.
D. Granule Packing Solution
Volumetric Cup Filler is specialized for granule filling such as chemical, beans, salt, seasonings etc.

Focus On Details

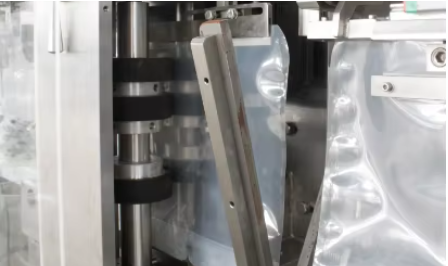

Light Walking Beam

1. Faster working speed
2. Longer operational life span

Servo Advance System

1. Easy computerized specification change

2. Stable pouch advance with less deviation

3. Big torquemoment of pouch advance, suitable for big volume

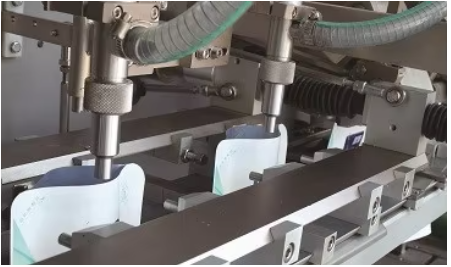

Dual Filling Station

1. Reduce filling time by half
2. Improved filling accuracy
3. Can filling 2 products simultaneously
