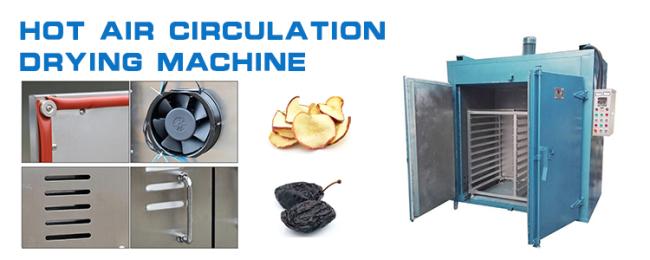

Hot Air Circulation Drying Oven Dryer Machine For Vegetable Industry Stainless Steel
Ct-C series hot air circulating tray oven adopts noise elimination and thermal stable axial flow fan and automatic temperature control system;
The entire system is enclosed to make the heat efficiency of the drying oven increases from 3-7% of the traditional drying oven to 35-40% of the present one;The highes heat efficiency can be up to 50%.
FEATURES
1. Most hot air is circulated in the oven;
2. The high efficiency is high and energy-saved;
3. Forced ventilatingfunction, adjustable air distribution plated inside the oven, materials can be dried uniformly;
4. Heating source: electricity, steam, electricity+steam, widely choice;
5. Low noise: < 75dB;
6. Temperature: controlled automatically;
7. Easy maintenance, wide application.
Technical Data
| Model & spec. | Drying quantity per time (kg) | Power of blower fan (kw) | Consumed steam(L/min) | Drying cart (pcs) | Drying pan(pcs) | Machine Size (mm) | Upper and lower temp. difference |
| CTC-0 | 25 | 0.45 | 5 | 0 | 24 | 1550*1000*2044 | ±2 |
| CTC-1 | 100 | 1.1 | 20 | 2 | 48 | 2300*1200*2433 | ±2 |
| CTC-2 | 200 | 1.1 | 40 | 2 | 96 | 2300*2200*2433 | ±2 |
Applications
The products are mainly applied to tobacco, seafood, timber, flowers, herbs, seeds, and all kinds of dehydrated vegetables.
VEGETABLES AND FRUITS
Mushrooms, Pumpkin, Poria, Onion, Fern, Spinach, Wild Vegetables, Carrots, Celery, Beans, Cowpea, Chili, Tomatoes, Garlic, Ginger, Kiwi, Lychee, Longan , Apples, Persimmons, Roses, and etc.
HERBAL
American Ginseng, Red Ginseng, White Ginseng, Heterophylla, Ginseng, Angelica, Cordyceps Sinensis, Honeysuckle, Chrysanthemum, Schisandra, Wolfberry, Rehmannia, Cistanche, Astragalus, Dendrobium, Konjac, Platycodon Grandiflorum, Yam, and etc.
