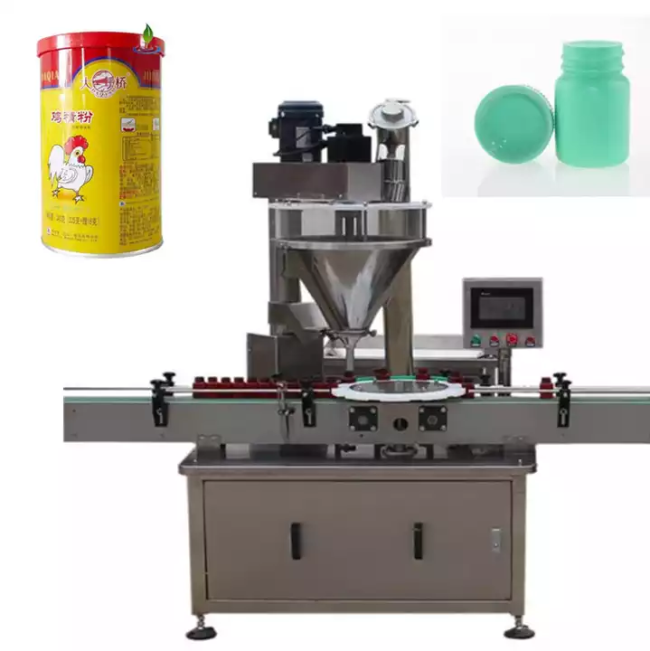

This equipment is a latest filling machine designed and developed by our company according to the latest GMP standard of the country. The machine adopts the latest technology, and the design is more reasonable, more concise and more robust. Automatically enter the tank, metering, filling, suitable for packaging powder granular materials, such as milk powder, protein powder, chicken powder, solid beverages, grape mash, rice flour and so on.

Features:

1, Chinese and English LCD touch screen, PLC control system, work at a glance.

2. Use can or bottle container, no bottle, no bottle, no filling, can be equipped with automatic bottle inlet system

3. The structure and layout of the whole machine are reasonable, the variety of packaging is changed, hygiene and convenience are eliminated.

4, using imported servo motor, fast speed, large torque, greatly improving the packaging accuracy.

Parameters

Weight range:10-5000g

Precision error range:±1%

Filling speed:0-40 bottles/min-

Power:380v/220v,50-60HZ

Voltage:2kw

Weight:500kg

Suitable cans size: hight:50-350mm, cans diameter:100-200mm,30-100mm

work bin volume:50L

Dimension: L*W*H(4000×1500×2200)mm
