Pure Drink / Drinking / Drinkable Water Bottle Blow / Blower / Blowing Machine / Equipment / Line / Plant / System
Price:
Negotiation
MOQ:
1 set/pcs
Delivery Time:
35-40 days after deposit receipt
Brand:
FillPack
Product Description

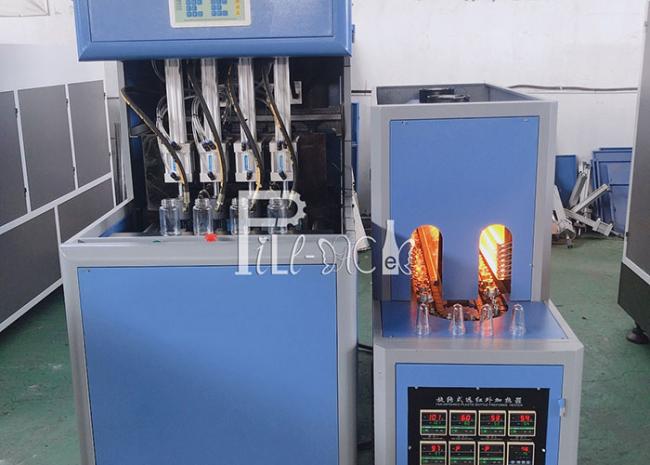

Semi-automatic 4 CAVITY blow molding machine with auto preform elevator, auto dropper
>>> Product Introduction:
Blow FP-B4 semiautomatic bottle blow molding machine is suitable for producing PET plastic containers and bottles from 10-2000ml. It is widely used to produce the carbonated bottle ,mineral water, carbonated drink bottle, pesticide bottle oil bottle cosmetics, wide-mouth bottle etc.
>>> Product Features:

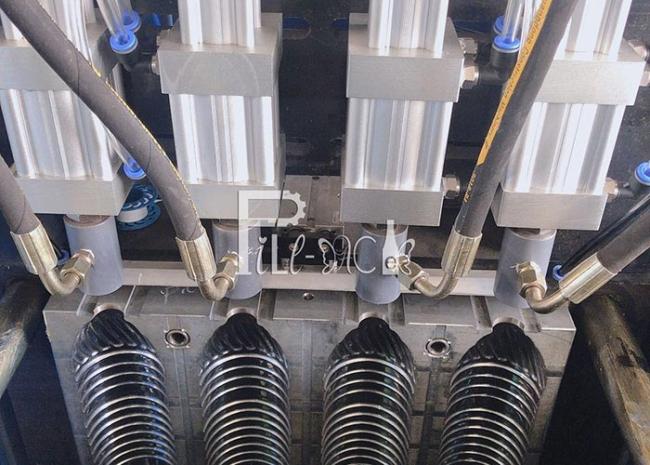

● Adopting double crank to adjust mould, heavy locking mould, stable and fast ,Adopt infrared oven to heat the perform ,the perform rotated and heated equally.

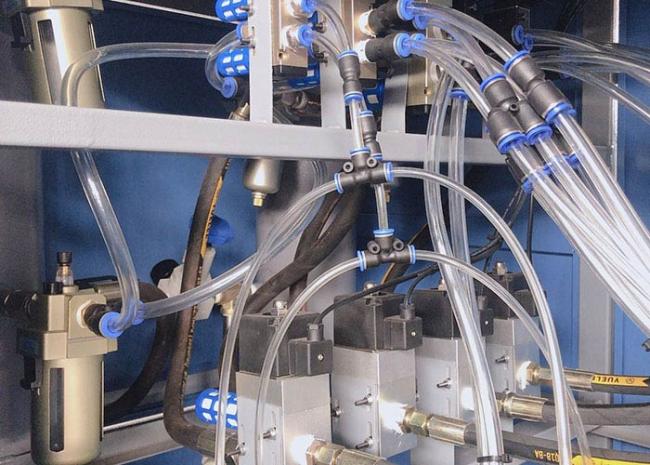

● The air system has been divided into two parts: pneumatic action part and bottle blow part to meet the different requirements for the action and blow .It can provide sufficient and steady high pressure for blowing large irregular shaped bottles.
● The machine is also equipped with muffler and oiling system to lubricate the mechanical part of the machine.
● The machine can be operated in the step-by-step mode and the semi-auto mode.
● The machine is small with low investment, easy and safe to operate.
>>> Flow and Auxiliary machines:
HP Air Compressor → Air Tank → Air Filter → Air Dryer → Air Filter → Chiller → LP Air Compressor → Automatic Bottle Blowing Machine
1. Auxiliary Machine To operate this PET blowing machine, it also need some auxiliary machines. such as air compressor, air filter, air dryer, chiller and so on. we will equip the auxiliary machine according to your need.
2. Bottle Preform If you need, we can also help you find the bottle preform in china.
3. PET Bottle Mold Our PET blowing machine can produce various shape bottles. we can according to your need to design your own bottle and make mold for you.
4. Preform & Cap Molds We also can provide you with preform mold and cap mold according to your demand.
>>> Technical Paramters:
|
Model
|
FP-4B
|
|
|
Container
|
Product material
|
PET
|
|
Volume
|
50ml-1500ml
|
|
|
Ouput
|
1400-2000BPH
|
|
|
Max bottle length
|
420mm
|
|
|
Max bottle diameter
|
40mm
|
|
|
Moulding
|
Stretching stroke
|
420mm
|
|
Clamping force
|
5.7T(56KN)
|
|
|
Mould opening stroke
|
210mm
|
|
|
Machine size and weight
|
Blowing machine (L×W×H)
|
1600*1200*1610mm
|
|
Blowing machine weight
|
1000kg
|
|
|
Heater (L×W×H)
|
1870*630*1450mm
|
|
|
Heater weight
|
260kg
|
|
