Carbonated Drink Beverage PET Plastic Glass 3 In 1 Monobloc Bottling Machine / Equipment / Line / Plant / System
Let's explore our glass bottle carbonated filling machine

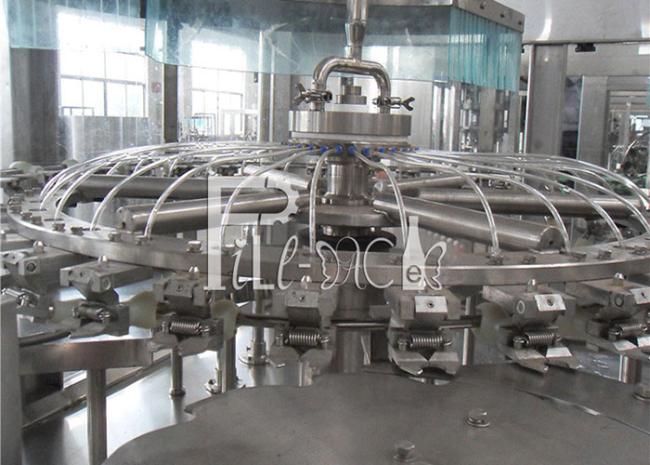

★The transfer mode of glass bottle is the bottom of the towing bottle. Glass bottles are separated by screw and then entered into the bottle washing mechanism in turn. By clamping the bottle mouth, the glass bottle is reversed 180 degrees, so that the bottle mouth is down, spraying and washing the inside and outside of the bottle. The rinsing water used is pure water. The rinsing water will be concentrated in the receiving plate and discharged by the designated outlet. The rinse here is simply to remove small particles of impurities that may exist in the air inside the glass bottle. If the glass bottle is recycled, it needs to be disinfected and cleaned before entering the carbonated beverage filling machine.
1) The high efficiency atomizing spray nozzle installed on bottle clamp is capable of cleaning any part of bottle inner wall, and also saves rinsing water.
2) The rinser is driven by driving system positioned inside machine frame via gear transmission.
3) Rinser using high-strength stainless steel bottles of spring-loaded folders, to ensure a stable reversal of the glass bottles. The nozzle is a plum-like structure can wash every corner of the side wall and bottom to make the bottle clean.
|
Teachnical parameters of DCGFG32-32-10
|
||||||
|
Filling precision
|
≤+/-1mm(liquid level)
|
|||||
|
Filling pressure
|
≤0.4MPa
|
|||||
|
Glass bottle specification
|
(Bottle diameter)50-100mm (Height)170-320mm
|
|||||
|
Suitable cap shape
|
Glass or other material screw cap
|
|||||
|
Filling temperature
|
0℃—5℃
|
|||||
|
Cleaning pressure
|
0.2-0.25MPa
|
|||||
|
|
||||||
|
Our family of glass bottle carbonated filling machine
There's always one suitable for you
|
||||||
|
Model
|
Rinsing filling capping heads
|
Capacity(BPH)
|
Power(kw)
|
Weight(Kg)
|
Dimension
(mm)
|
|
|
DCGFG12-12-4
|
12/12/4
|
1000-2000
|
4.4
|
2800
|
|
|
|
DCGFG18-18-6
|
18/18/6
|
3000-4000
|
5
|
3800
|
2360*1770*2700
|
|
|
DCGFG24-24-8
|
24/24/8
|
6000-7000
|
6
|
5000
|
3200*1900*2300
|
|
|
DCGFG32-32-10
|
32/32/10
|
8000-10000
|
8
|
6000
|
4300*2000*2300
|
|
|
DCGFG40-40-12
|
40/40/12
|
10000-12000
|
10
|
9000
|
4500*3500*2300
|
|
