Carbonated Drink Beverage PET Plastic Glass 3 In 1 Monobloc Bottle Production Machine / Equipment / Plant / System
Price:
120000USD
MOQ:
1 set
Delivery Time:
30 Working Days After Receiving Your Deposit Payment
Brand:
FillPack
Product Description

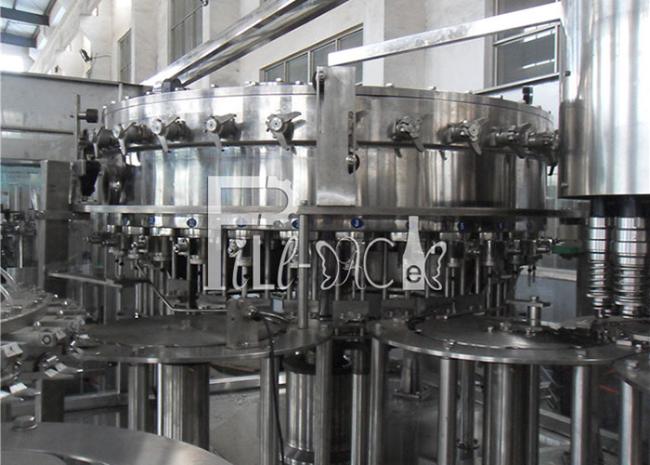

Description of DCGF32-32-10 Plastic Bottle Filling machine
|
Teachnical parameters of DCGF32-32-10
|
||||||
|
Filling precision
|
≤+/-1mm(liquid level)
|
|||||
|
Filling pressure
|
≤0.4MPa
|
|||||
|
PET bottle specification
|
(Bottle diameter)50-115mm (Height)160-320mm
|
|||||
|
Suitable cap shape
|
Plastic or other material screw cap
|
|||||
|
Filling temperature
|
0℃—5℃
|
|||||
|
|
||||||
|
Our family of plastic bottle carbonated filling machine
There's always one suitable for you
|
||||||
|
Model
|
Rinsing filling capping heads
|
Capacity(BPH)
|
Power(kw)
|
Weight(Kg)
|
Dimension(mm)
|
|
|
DCGF12-12-4
|
12/12/4
|
2000-3000
|
4.4
|
2500
|
2250*1650*2250
|
|
|
DCGF18-18-6
|
18/18/6
|
3000-5000
|
5.2
|
3500
|
2600*1965*2250
|
|
|
DCGF24-24-8
|
24/24/8
|
5000-7000
|
6.2
|
4500
|
2980*2200*2250
|
|
|
DCGF32-32-10
|
32/32/10
|
7000-10000
|
6.2
|
6000
|
3880*2200*2250
|
|
|
DCGF40-40-12
|
40/40/12
|
10000-15000
|
7.5
|
7200
|
4000*2250*2500
|
|
|
DCGF50-50-15
|
50/50/15
|
16000-20000
|
11
|
10000
|
5500*2250*2500
|
|
|
DCGF60-60-15
|
60/60/15
|
20000-24000
|
15
|
11500
|
6500*5500*2550
|
|
|
|
||||||
|
If you need glass bottle carbonated filling machines, please check them on our website or contact the sales consultant directly. Please find the contact information at contact us.
|
||||||
>>>Our machine have so many characteristics:
★1, Structural hygiene: All parts in contact with beverages are made of high quality stainless steel, all liquid and gas pipes are polished inside and outside, and all seals in contact with beverages are made of nitrile rubber or silicone rubber for food, which meets the hygienic requirements.
★2, The structure of the capping machine is advanced: the capping head adopts magnetic capping, adjusts the required torque according to different caps, and is suitable for various types of plastic caps; the capping machine adopts tooth-shaped device, and the lower cap slideway is equipped with cap detection device to ensure that there is no back cap and no bottle without capping.
★2, The structure of the capping machine is advanced: the capping head adopts magnetic capping, adjusts the required torque according to different caps, and is suitable for various types of plastic caps; the capping machine adopts tooth-shaped device, and the lower cap slideway is equipped with cap detection device to ensure that there is no back cap and no bottle without capping.
>>>Working process:
★In the sealing part, crown caps are commonly used for carbonated beverages in glass bottles, and the sealing effect is very good. The whole capping mechanism is cylindrical. It rotates 360 degrees according to the center of the spindle. The bottle is automatically capped, and then enters the capping mechanism. The capping head operates along a specific guideway and moves up and down in a straight line. When the bottle with the cap is under the cap, the cap is compressed by the cap, and then output by the conveyor chain plate to complete the whole washing, isobaric filling and capping process.
Bottle capping
1)The expert improve the design of magnetic steel, this improvement can reduce the defective rate of capping better and the traditional character of easy to set and adjust the torque of screwing capping head.
2)The device which can take out the reverse cap and prevent the reverse cap passing is settled in the cap-falling guide.
3)A group of photoelectric switches are settled on cap-falling guide. The machine will stop when there is no cap on the guide.
4)A bottle inlet detect switch is settled on the screwing capper.
5)By adjusting the height of the rotary parts to adapt for different bottle height.
6)The main parts of the screwing capper are processed by the digital-control processing center
1)The expert improve the design of magnetic steel, this improvement can reduce the defective rate of capping better and the traditional character of easy to set and adjust the torque of screwing capping head.
2)The device which can take out the reverse cap and prevent the reverse cap passing is settled in the cap-falling guide.
3)A group of photoelectric switches are settled on cap-falling guide. The machine will stop when there is no cap on the guide.
4)A bottle inlet detect switch is settled on the screwing capper.
5)By adjusting the height of the rotary parts to adapt for different bottle height.
6)The main parts of the screwing capper are processed by the digital-control processing center
