Semi Auto Mineral Water Stretch Bottle Blow Moulding / Molder / Molding Machine / Equipment / Line / Plant / System
1 cavity semi-auto blow molding system for 5gallon
>>> Product Introduction:

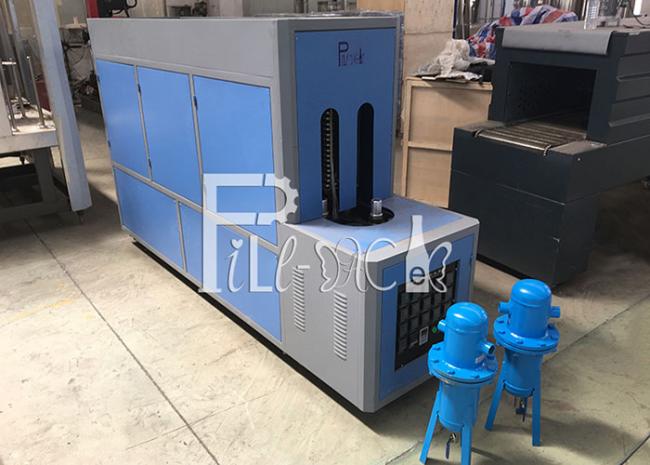

FP-120 Bottle Blowing Machine Manufacturer with one cavity is especially used to produce 3 gallon and 5 gallon bottles and is widely used to produce any shape of plastic from PET with neck finishes from 15mm-200mm.
>>> Product Features:
● Perfect function with economic investment.
● Small size and compact construction with no space waste.
● Easy to operate and maintain ,operation by one person.

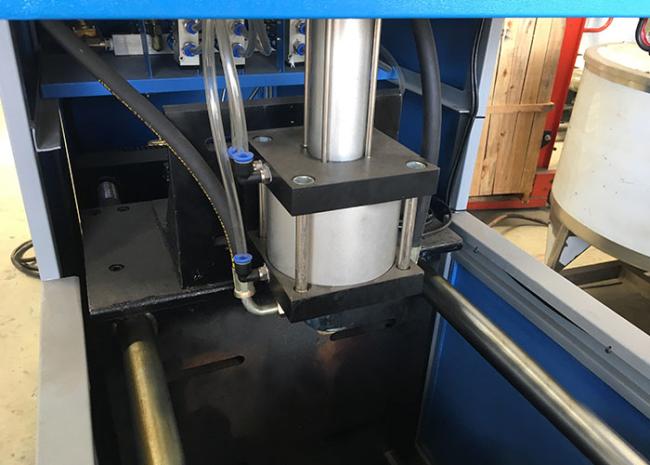

● Saving power and uneasy to worn out ,Adopting new double crank four bars to lock mould, the cross fixed. Providing high pressure blowing system.
● We can provide performs and various bottle& cap molds for 5 gallon and 3gallon bottles to meet customer's requirements.
>>>Technical Paramters:
|
Container
|
Product material
|
PET
|
|
Volume
|
10L-20L(3-5Gallon)
|
|
|
Output
|
150PCS/H
|
|
|
Max bottle length
|
430mm
|
|
|
Max bottle diameter
|
300mm
|
|
|
Moulding
|
Stretching stroke
|
450mm
|
|
Clamping force
|
6000kg
|
|
|
Mould opening stroke
|
360mm
|
|
|
Machine size and weight
|
Main machine
|
2350*750*1900mm/1500Kg
|
|
Heater
|
2670*680*1650mm/380Kg
|
|
|
Power
|
40kw
|
