Semi Auto Mineral Water Stretch Bottle Blow / Blower / Blowing Machine / Equipment / Line / Plant / System

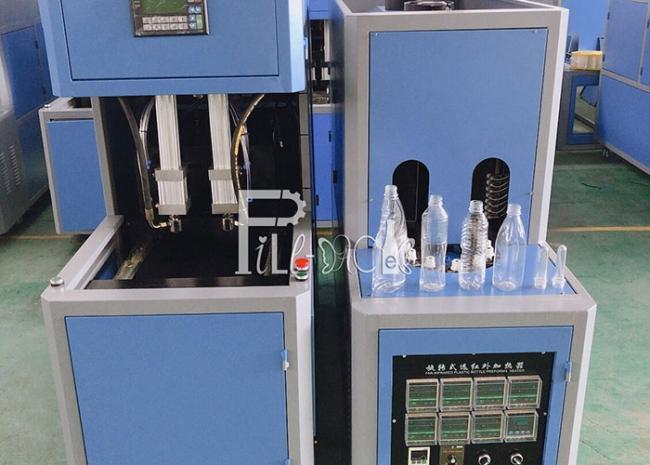

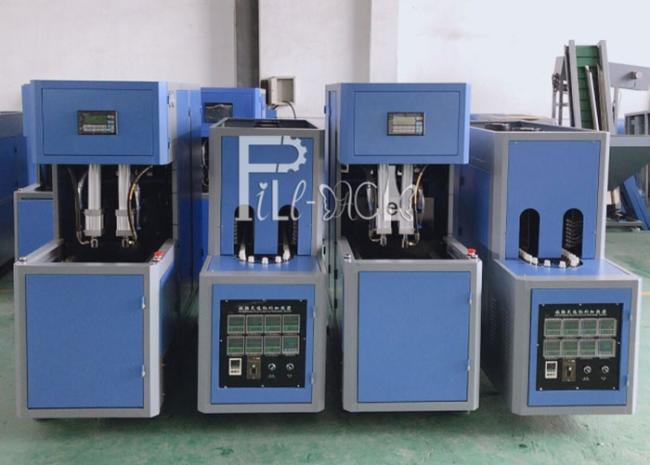

1+1 PET bottle blow molding machine
>>> Product Introduction:
FP-1200 semi-automatic bottle blow molding machine is suitable for producing PET plastic containers and bottles from 10-2000ml. It is widely used to produce the carbonated bottle ,mineral water, carbonated drink bottle, pesticide bottle oil bottle cosmetics, wide-mouth bottle etc.
>>> Product Features:

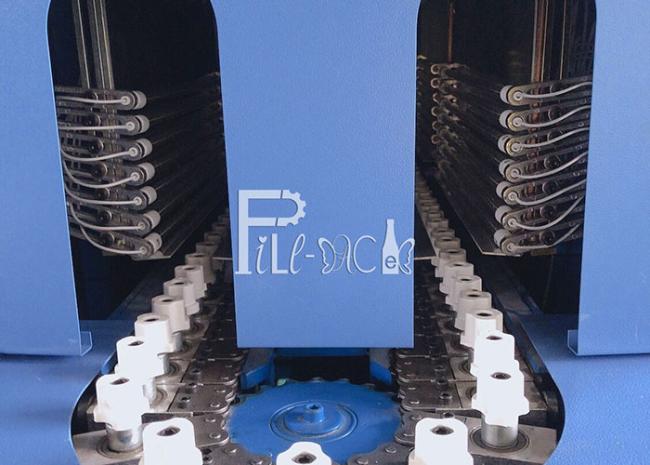

● Adopting double crank to adjust mould ,heavy locking mould, stable and fast ,Adopt infrared oven to heat the perform ,the perform rotated and heated equally.
● The air system has been divided into two parts: pneumatic action part and bottle blow part to meet the different requirements for the action and blow .It can provide sufficient and steady high pressure for blowing large irregular shaped bottles.
● The machine is also equipped with muffler and oiling system to lubricate the mechanical part of the machine.
● The machine can be operated in the step-by-step mode and the semi-auto mode.
● The machine is small with low investment, easy and safe to operate.
>>> Technical Paramters:
|
Container
|
Product material
|
PET,PP,PE
|
|
Volume
|
0.1-2L
|
|
|
Theoretical output
|
800-1000BPH
|
|
|
Preform length
|
15-350mm
|
|
|
Preform inner diameter
|
Φ5-38mm
|
|
|
Moulding
|
Max.mould plate Dimenstion
|
350×380mm
|
|
Max.mould thickness
|
180mm
|
|
|
Clamping force
|
45KN
|
|
|
Mould opening stroke
|
16
|
|
|
Machine size and weight
|
Main machine
|
160×60×161cm/500Kg
|
|
Heate
|
187×63×145cm/250Kg
|
|
|
Power
|
17.5kw
|
