Semi Auto Mineral Water Stretch Bottle Blow Production / Producing Machine / Equipment / Line / Plant / System
Semi-auto 1 cavity blow molding machine 400-500BPH 0-5L PET bottle
>>> Product Introduction:

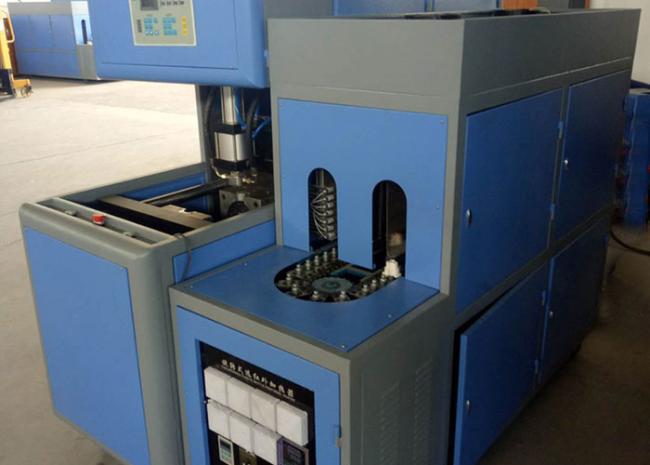

FP-500 Bottle producing machine is especially used to produce 5L bottles and is widely used to produce any shape of plastic from PET with neck finishes from 15mm-200mm.
>>> Product Features:
● Perfect function with economic investment.
● Small size and compact construction with no space waste.
● Easy to operate and maintain, operation by one person.
● Saving power and uneasy to worn out, Adopting new double crank four bars to lock mould, the cross fixed. Providing high pressure blowing system.
● We can provide performs and various bottle & cap molds for 5 gallon and 3 gallon bottles to meet
customer’s requirements.
>>>Technical Paramters:
|
Container
|
Product material
|
PET
|
|
Volume
|
0-5L
|
|
|
output
|
400-500PCS/H
|
|
|
Preform length
|
15mm-320mm
|
|
|
Preform inner diameter
|
φ5mm-200mm
|
|
|
Moulding
|
Max.mould plate Dimenstion
(L x W) |
520x350mm
|
|
Max.mould thickness
|
180mm
|
|
|
Clamping force
|
480KN
|
|
|
Mould opening stroke
|
420mm
|
|
|
Machine size and weight
|
Main machine (L x W x H)
|
1850*610*1700mm
|
|
Main machine weight
|
800Kg
|
|
|
Heater (L x W x H)
|
1800*610*1400mm
|
|
|
Heater weight
|
300Kg
|
|
|
Power
|
40kw
|
