Description of our FRP Mechanical pre-filters of water treatment system
A)Material:
(a). inner shell – Polyethylene (PE) seamless one-piece tank liner
(b). Outer shell – Continuous strands of fiber-glass with high strength epoxy resin
(c). Bottom base – FRP reinforced tripod base
(d). Opening – 2.5" & 4" precision injected model with threaded opening for 8 " to 36" diameter tanks
(e). Opening – 6 "Aluminum flange (anti-corrosion coating) opening for 36” to 63” diameter tanks
B)Working Pressure: (a)≤1.0MPa(150PSI)
C)Working Temperature :≤49°C
D)Maximum Vacuum :127mmHg(5"Hg).
E)Maximum Temperature :40C (104F)
F)Certificates:CE ;NSF ; ISO9001 etc.
G)Media : water
Application:
All feed water and waste water treatment application, included multi-media filter and softener.
Mineral / pure drinking water ion exchanger / precision / cartridge treatment equipment / plant / machine / system

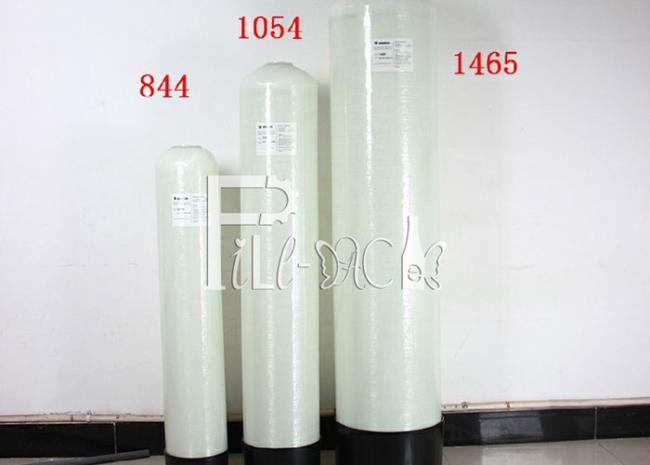

Parameters of our FRP Mechanical pre-filters:
The FRP Mechanical pre-filters are matched with water treatment:
| Model | Size | Used for Water treatment machine |
| 818 | 200X450 | 0-100LPH |
| 835 | 200X 875 | 100-250LPH |
| 844 | 200X1100 | 100-250LPH |
| 942 | 200X1050 | 250-500LPH |
| 1035 | 250X875 | 250-500LPH |
| 1054 | 250X 1350 | 250-500LPH |
| 1252 | 300X 1300 | 500-1000LPH |
| 1354 | 325X 1350 | 1000-1500LPH |
| 1465 | 350X 1625 | 1000-1500LPH |
| 1665 | 400X1625 | 1500-2000LPH |
| 1865 | 450x1625 | 2000-2500LPH |
