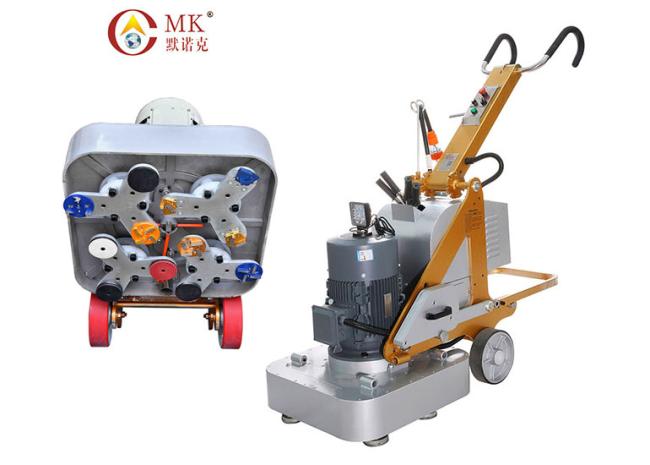

Aluminum Casting Gear Box 440V 15KW Concrete Grinding Equipment
Three Phase 440V 15KW Aluminum Casting Gear Box Concrete Floor Grinder
Quick Detail:
| Name |
Three Phase 440V 15KW Aluminum Casting Gear Box Concrete Floor Grinder |
Application | Marble, granite, terrazzo, concrete floor |
| Type | S12-700 415V | Function | Leveling, polishing, grinding, renovating |
Description:
1. Aluminum alloy die-casts one body base plate is hard and don't deform, its work efficiency is about 3 pieces of MRK-V12-510.
2. Three Phase 440V 15KW Aluminum Casting Gear Box Concrete Floor Grinder is used to produce a smooth finish on flat surfaces for free movement floors.
3. Free movement floors refer to areas where materials handling equipment operate in random, non-defined directions and have an infinate number of travel paths.
4. Three Phase 440V 15KW Aluminum Casting Gear Box Concrete Floor Grinder with removable led light can work at night.
5. 4 plates with 12 pieces heads, each time need fix 12 pieces pads (blades).
6. With vacuum cleaner connector could install a vacuum cleaner outside.
7. It with water tank can wet and dry grinding.
8. It's apply to marble, granite, terrazzo, concrete floor, natural stone floor and rostone floor etc.
9. It's easy to control and has stable performance.
Application:
Three Phase 440V 15KW Aluminum Casting Gear Box Concrete Floor Grinder it's for stone leveling, stone polishing and grinding, concrete polishing and grinding, also apply to remove the old coat of epoxy etc...
| Model | S12-700 | S12-700 | |||
| Phase | three | three | |||
| Voltage | 380V | 380V | |||
| Power | 15HP/11KW | 20HP/15KW | |||
| Inverter | 15HP/11KW | 20HP/15KW | |||
| Speed | 0-1500rpm | ||||
| Work width | 700*700mm | ||||
| Heads | 12 pieces | ||||
| Grinding plate | 4 pieces | ||||
| Water tank | 30L | ||||
| NW(KG) | 480/500 | ||||
| GW(KG) | 530/550 | ||||
| Packing size(CM) | 110x70x134cm | ||||
Feature:

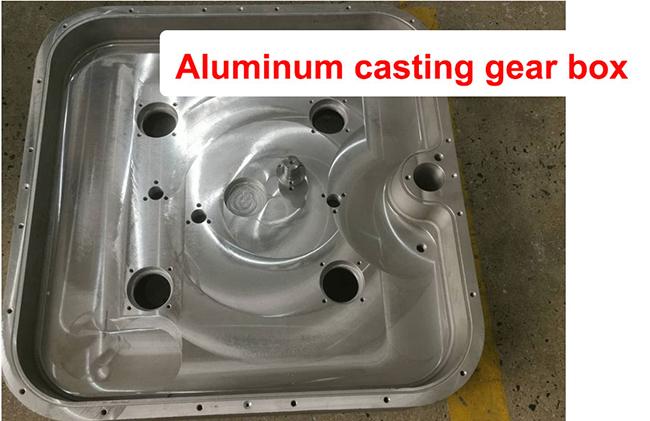

1. Three Phase 440V 15KW Aluminum Casting Gear Box Concrete Floor Grinder with aluminum alloy die-casts one body base plate.
2. Use helical to reduce the noise of machine.
3. It can use the dry and wet resin polishing pads, metal diamond grind blades.
4. With storage bin can collect some tools.
5. With led light can work at night.
Detail picture:
Tools for the machine S12-700:
Diamond polishing pads (Include wet polishing pad, dry polishing pad and renovation pad)
1. Wet polishing pad for wet grinding and polishing for the quartzite, marble, granite, terrazzo and concrete floor.
2. Dry polishing pad for dry grinding and polishing for the quartzite, marble, granite, terrazzo and concrete floor.
3. Renovation pad for wet grinding and polishing for the quartzite, marble, granite, terrazzo and concrete floor.
Metal diamond grinding shoes (J007 and J007B) for concrete terrazzo and epoxy floor
Metal diamond grinding discs (J008, J009, J010, J011) for concrete terrazzo and epoxy floor
Metal diamond grinding blades for concrete terrazzo and epoxy floor
16# J013 diamond grinding disks for removing the old epoxy floor
J016 PCD diamond grinding shoes for removing the old epoxy floor
Packing:
Carton + iron frame
Size: 1100x700x1340mm
Tag: concrete floor grinding machine, marble floor grinding machine
