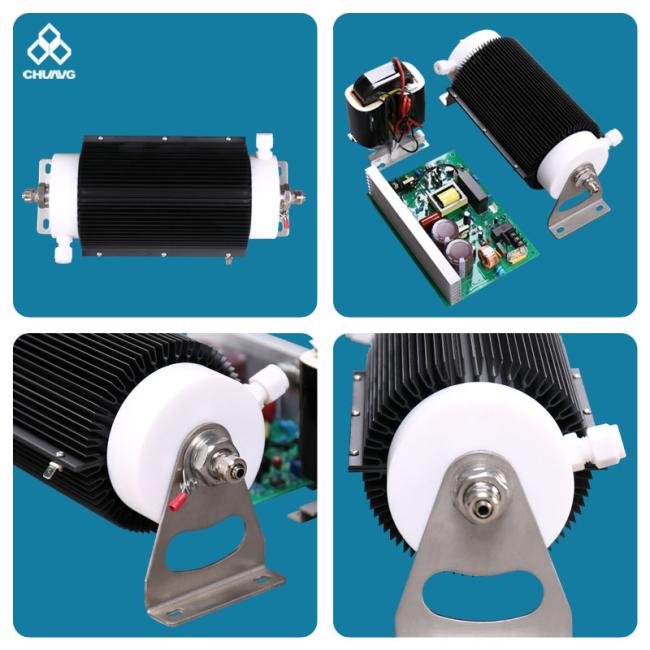

Air and water cooled ozone machine parts ozone generator tube ceramic tube for water

Air and water cooled ozone machine parts ozone generator tube ceramic tube for water

Imported material of high pure ceramic, SS 316L of internal electrode, teflon connections which are best anti-oxidation material for ensuring several years running.

Features:

• Extremely low rate of ozone decay & high ozone concentration.
• Ozone concentration is around 40~70 mg/L, which is much higher than conventional products.
• Domestic patent product -- got domestic patent in 2008.
• Low working voltage
• Small in size.
• Easy to maintain and install

Air and water cooled ozone machine parts ozone generator tube ceramic tube for water

Item	Unit	CH-PT7-50G
/	/	7GM	7GA	15GA-1	30GA	50GA
Ambient temperature	℃	28		21.9	22	26
Ambient humidity	%	37		39	38	44
Oxygen feed flow rate	LPM	1~3		3~5	7~9	15~18
Ozone concentration	Mg/L	70-40		66.4~53	62~53	52~49
Ozone output	G/Hr	4.2~7.2		11.9~15.9	26~28.6	46.8~52.9
Power (220V)	W	≤100	≤100	≤190	≤500	≤500
Current +_10%	A	0.45		0.86	1.4	1.9
Cooling way		Air cooling for external electrode,water cooling for internal electrode
Cooling water flow rate	LPM	>2
Diameter of cooling water pipe	mm	EDФ10
Temperature of cooling water	℃	Ambient temperature ±8℃







Air and water cooled ozone machine parts ozone generator tube ceramic tube for water





Company Introdcution:

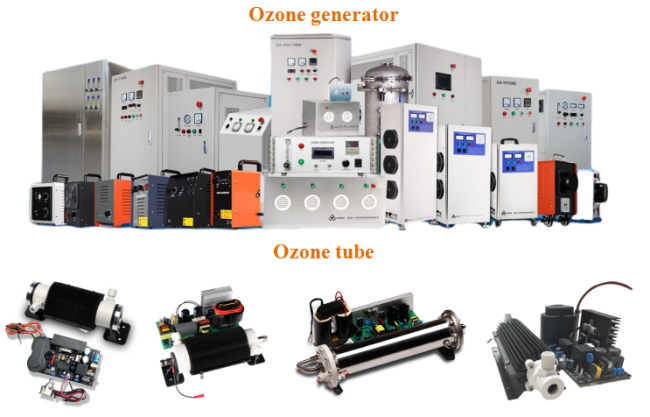

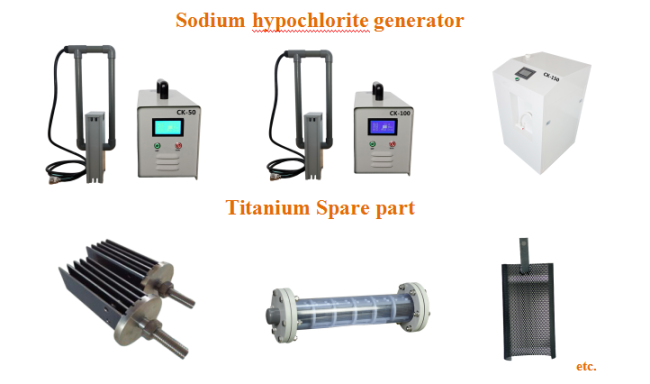

Guangzhou OSUNSHINE Environmental Technology Co., Ltd., based on the parent company of Guangzhou Chuanghuan Ozone Electric Appliance Co., Ltd. which was established in 2006, It focuses on Ozone generator, Oxygen machine, Sodidum Hypochlorite generator, Ozone tube, Titanium anode plate, accessories production, development and application of products etc.
