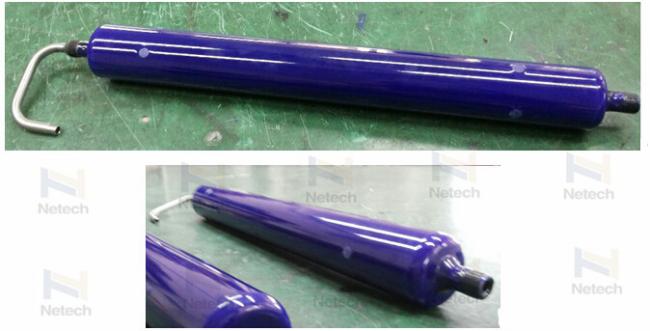

18G/Hr Stainless Steel Enamel Ozone Cell 0.4-1.0 Thickness For Dielectric Tube
18G/Hr Stainless Steel Enamel Ozone Cell 0.4-1.0 Thickness For Dielectric Tube
Coating for electrode (dielectric tube) is thin and regularly.Thickness for coating is 0.4-1.0 mm.
Dielectric withstand voltage can be more than 15,000V.
Our CH-TCP dielectric tube solved the integrative technologies for medium and electrode, simplified manufacturing technology for ozone generator tube.
Through thickness base materials of dielectric tube(1.5-2 mm) to improve heat dissipation efficiency.
Provide advantages for large ozone generator production with its flexible link for the dielectric tube.
Tolerance for thickness of surface coating is ±0.05mm.Nonconcave-convex crack and bubble on the surface.
Tolerance for diameter is ≤0.05mm, nonstraightness≤0.1mm, ovality≤0.03mm.
|
Model |
Thickness for enamel coating |
Dielectric withstand voltage |
|
|
CH-TCP18G |
55.8×200mm |
0.4-1.0mm Thickness for dielectric tube is adjustable |
10,000V |
|
CH-TCP30G |
55.8×280mm |
||
|
CH-TCP40G |
55.8×400mm |
||
|
CH-TCP60G |
55.8×544mm |
||
|
CH-TCP80G |
55.8×650mm |
||
