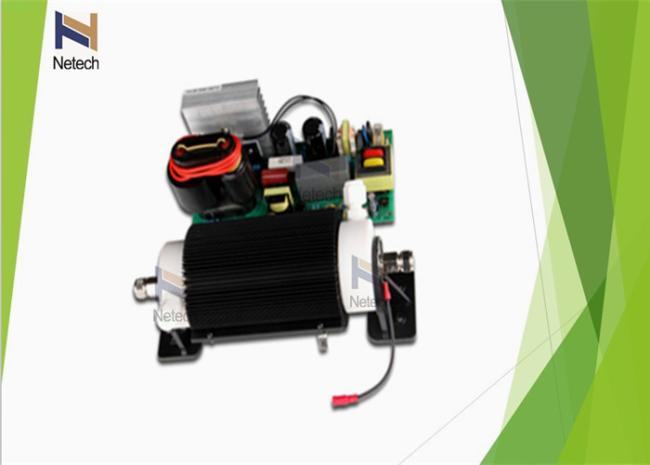

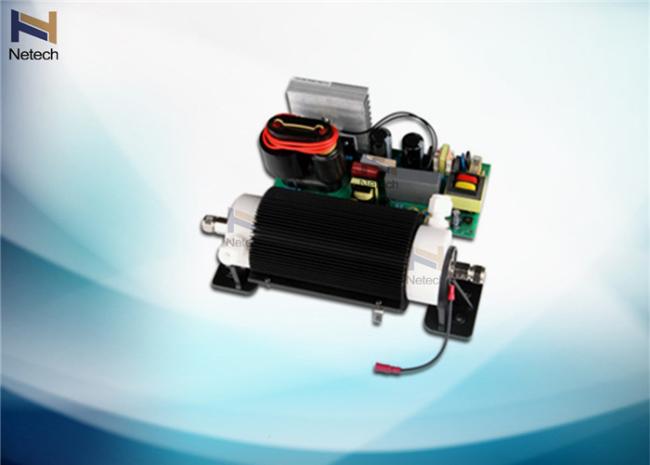

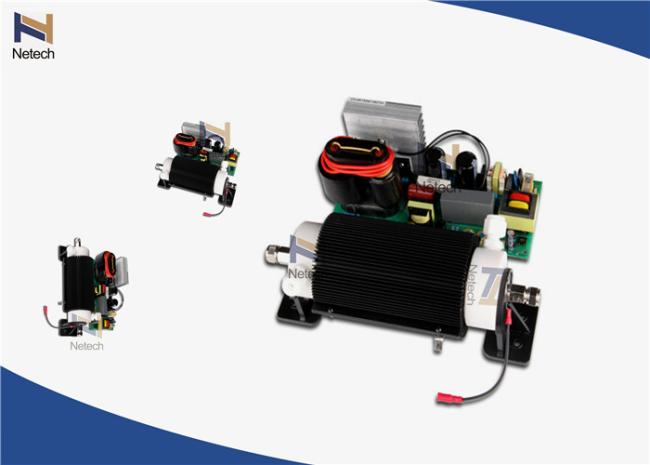

7 - 50 G / H High Efficiency Ceramic Ozone Tube For Water Plant Air Cleaner Spare Part
Ozone Generator Ceramic Tube 7 - 50 g / h For Water Plant Air Cleaner Spare Part
Model:CH-PT 7-50 G/Hr
Ozone concentration: 40~70 mg/L
Advantage:
High efficiency: The narrow-gap discharge,high ozone conversion rate, low noise.
High-voltage high-frequency corona discharge.
Domestic product -- got domestic in 2008.
It is 1/4 smaller than similar products with same capacity.
The working voltage is only 10% of the similar products, stable capacity but with low ozone dissipated.
Imported material of high pure ceramic, SS 316L of internal electrode, connections which are best anti-oxidation material for ensuring several years running.
Specification:
The gas source requirements:
| Item | Unit | CH-PT | ||||
| 7GM | 7GA | 15GA | 30GA | 50GA | ||
| Ambient temperature | ℃ | 28 | 21.9 | 22 | 26 | |
| Ambient humidity | % | 37 | 39 | 38 | 44 | |
| Oxygen feed flow rate | LPM | 1~3 | 3~5 | 7~9 | 15~18 | |
| Ozone concentration | Mg/L | 70-40 | 66.4~53 | 62~53 | 52~49 | |
| Ozone output | G/Hr | 4.2~7.2 | 11.9~15.9 | 26~28.6 | 46.8~52.9 | |
| Power (220V) | W | ≤100 | ≤100 | ≤190 | ≤300 | ≤500 |
| Current +_10% | A | 0.45 | 0.86 | 1.4 | 1.9 | |
| Cooling way | Air cooling for external electrode,water cooling for internal electrode | |||||
| Cooling water flow rate | LPM | >2 | ||||
| Diameter of cooling water pipe | mm | EDФ10 | ||||
| Temperature of cooling water | ℃ | Ambient temperature ±8℃ | ||||
| Diameter of cooling fan | mm | 1pcs Dia.150 fan | 2pcs Dia.150 fan | |||
| Diameter of Gas inlet/outlet | mm | EDФ6 | EDФ6 | EDФ6 | EDФ8 | EDФ8 |
| Ozone output adjust range | % | / | 20-100 | 20-100 | ||
| Line power supply | V/Hz | 110/60 220/50 | ||||
| Ozone tube dimensions | mm | 200×100×105 | 260×100×105 | 300×140×150 | 325×140×150 | |
| Power supply dimensions | mm | 177×66×53 | 201×86×83 | 125×100×95 | 210×146×60 | 210×146×60 |
| weight of power supply | KG | 0.73 | 0.66 | 1.0 | 0.62+2 | 0.62+2 |
| weight of ozone tube | KG | 1.12 | 1.38 | 3.76 | 4.2 | |
Application:
SPA and hot tub
Water dispenser
Washer
Dishwasher
Drinking water purification
Aquaculture
