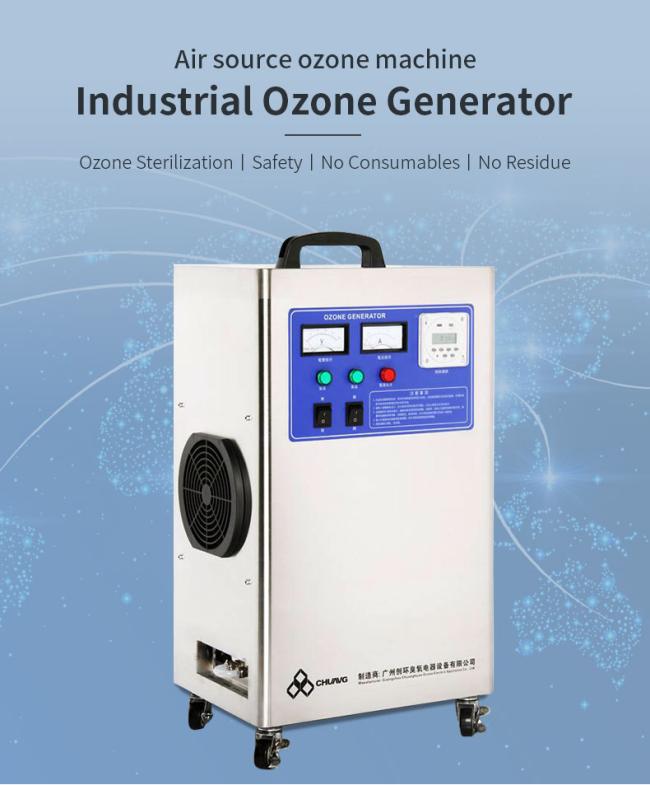

2g-20g 110V Fish Pond Ozone Generator Air Cooling Ceramic Ozonator For Aquarium
1. Quick details
| Gas source | air source or connect outside Oxygen source |
| Air flow rate | 40-90LPMLPM |
| Material | Ceramic tube |
| Cooling | Air cooling |
| Power supply | 220V,50 |
| Commodity | Ozone air and water system |
| Ozone output | 2g/3g/5g/6g/10g/15g/20g |
2. Control panel
Voltmeter, Ammeter, Switch, Timer, Working light, Power light etc.
3. Timer: One or Two recycle working time
4.Applications
1. treatment industry: clean sick room, operating room, treatment equipment, aseptic room, etc
2. Fruits and vegetables: keep fruits and vegetables fresh and store them
3. Sea food factory: Remove smell of sea food factory and kill bacteria, clean production water supply.
4. Slaughtering: Remove smell of slaughtering and kill bacteria, clean production water supply.
5. Poultry factory: Remove smell of poultry factory and kill bacteria,clean water for poultry feeding.
6. Commercial use in House, hotel, Office, KTV,club, Super Market, Fruit shop etc.
Air Purifier: Remove formaldehyde, benzene compounds, Smoke, Odors, Molds, Virus to fresh air.
Water purifier: clean production Water supply.
7. Bottle Water, Domestic Water, Well Water, Pool Water cleanion & clean
5. Features

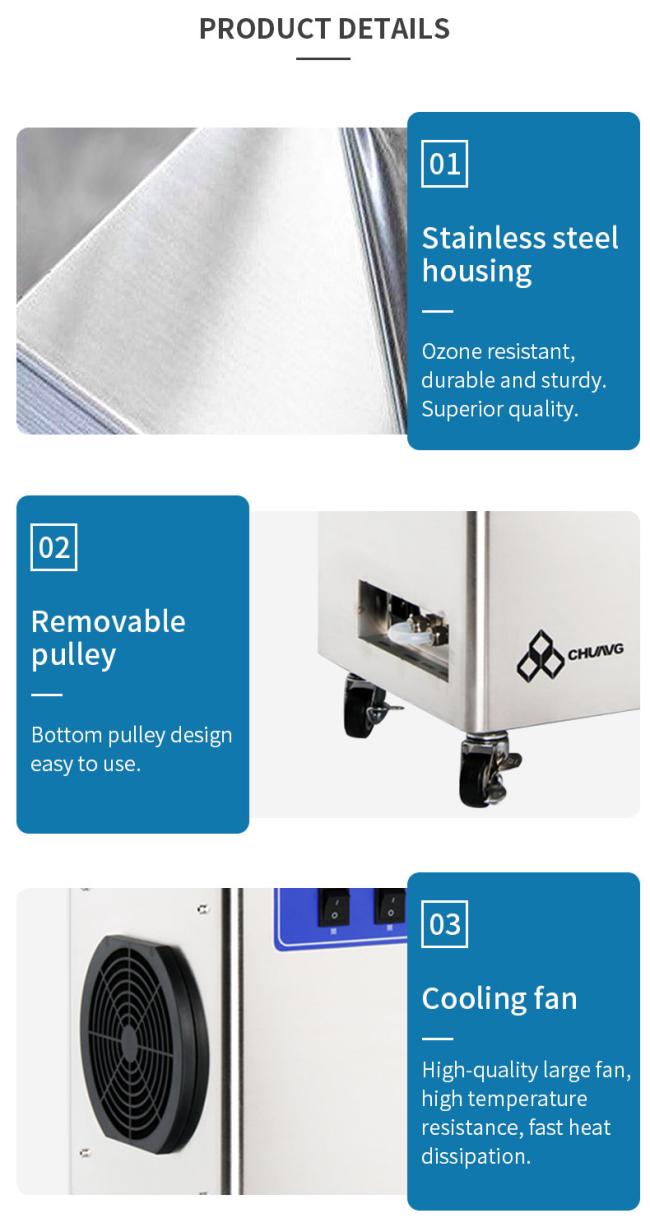

1. Built in Domestic ed Product -Air cooling ceramic ozone generator
2. Built in Automatic air dryer, Feed dry air or outside oxygen source
3. Connect with external ozone injector for water treatment
4. It can be Movable with wheels & Handles or Wall mounted.
5. No breakdown with easy operation and maintenance.
6.Specification
| Item | Unit | CH-T-N | ||||||
| 2G | 3G | 5G | 6G | 10G | 15G | 20G | ||
| Oxygen flow rate | LPM | 0.5~2 | 1~3 | 1.2~3 | 1.5~3.5 | 2.4~6 | 3.6~9 | 3~10 |
| Ozone concentration | Mg/L | 28~50 | 28~65 | 32~60 | 28~56 | 32~60 | 32~60 | 38.9~42 |
| Ozone output | G/Hr | 1.5~3.0 | 4~5.0 | 4.3~5.7 | 5.0~5.8 | 8.6~14.5 | 13~17 | 18.6~20 |
| Power | W | 115 | 135 | 160 | 185 | 260 | 330 | 400 |
| Air flow rate (Suggested) | LPM | 40~60 | 50~75 | 50~90 | ||||
| Compressed air pressure | Mpa | 0.025 | ||||||
| Fuse of power supply | A | 3 | 5 | 5 | 5 | |||
| Size | cm | 36×26×61 | 40×30×77 | |||||
| Net Weight | kg | 11.25 | 11.30 | 11.50 | 18 | 20 | 35 | |
Why choosing us?
1.Having 11 years production experienced .We are trusty business partner.
2.Quality Controlled:Quality Control personnel check the quality at every stage of production, from the incoming raw materials to the finished product.
3.NT-T-N Production Capacity: 3000 units per month.
4.We have serial products: ozone tube ,UV water cleanrs, ozone generators, oxygen concentrators, protein skimmers, and filters, mixing pumps and other water or air treatment spare parts.
5.We supply OEM service according to customers' requests and give out professional suggestions.
Quality control
Every procedure has personnel inspection.
All the products must be tested and qualified before packaging.
After sales service
We provide 12 month free maintenance.
The buyer should return the product in the original conditions to us and should
bear the shipping costs for return.
Question and answer
Is ozone harmful to human body ?
Once the ozone concentration fails to meet the hygiene and safety standard,
we can notice with our sense of smell and dodge away or take actions to avoid
further leakage.
So far there is no one death reported caused by ozone poisoning.
Does the ozone generator work efficently ?
Undeniably, ozone can clean and remove odor and formaldehyde.
It is reported that ozone is a widely used bactericide. It can kill escherichia coli,
bacteri efficently and resolve the harmful material in a short time.
Distributors Offer : Welcome to be our distributor
Applications
Get in Touch
Have questions about our products or want to discuss a custom order? Our team is ready to help you.
